CB1.13-2IPX4L-7.5IN

Active

Lighthorse Technologies, Inc

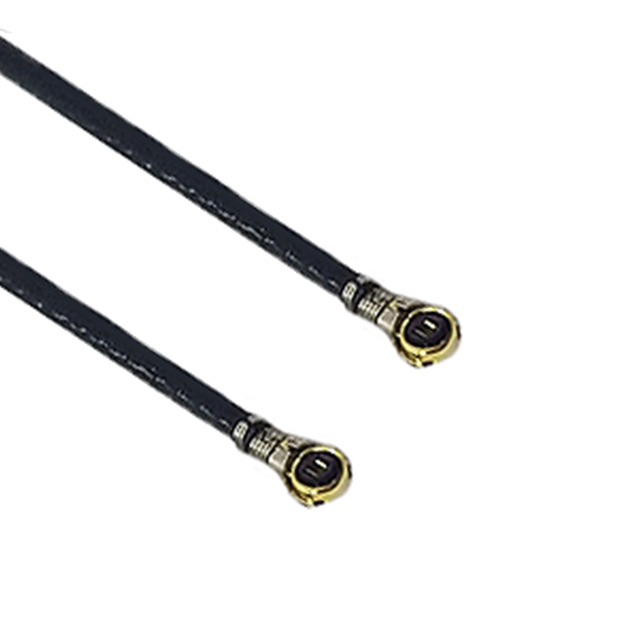

CBL ASSY MHF4L-MHF4L PL-PL 7.5"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CB1.13-2IPX4L-7.5IN

Active

Lighthorse Technologies, Inc

CBL ASSY MHF4L-MHF4L PL-PL 7.5"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CB1.13-2IPX4L-7.5IN

1st Connector	IPEX MHF4L Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	IPEX MHF4L Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Features	Shielded
Frequency - Max [Max]	12 GHz
Length [x]	190.5 mm
Length [x]	7.5 in
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	IPEX MHF4L to IPEX MHF4L

CB1.13 Series

Part	1st Connector Mounting Type	Length	Length	Features	2nd Connector	Overall Impedance	Cable Type	2nd Connector Mounting Type	2nd Contact Gender	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Style	1st Connector	1st Contact Gender	Color	Cable Impedance	1st Connector Mounting Feature	Length [x]	Length [x]
Lighthorse Technologies, Inc CB1.13-2IPX-11.5IN-6O	Free Hanging (In-Line)	292.1 mm	11.5 "	Opposite Orientation Shielded	U.FL (UMCC) IPEX MHF1 Plug Right Angle	50 Ohms	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	Female	9 GHz	90 °C	-40 °C	IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	IPEX MHF1 Plug Right Angle U.FL (UMCC)	Female	Black	50 Ohms
Lighthorse Technologies, Inc CB1.13-2IPX4L-10.5IN	Free Hanging (In-Line)	266.7 mm	10.5 in	Shielded	IPEX MHF4L Plug Right Angle	50 Ohms	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	Female	12 GHz	90 °C	-40 °C	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug Right Angle	Female	Black	50 Ohms
Lighthorse Technologies, Inc CB1.13-IPXLK-SAF3GT-10IN	Panel Mount	254 mm	10 in	Locking	IPEX MHF1 LK (Locking) Plug Right Angle	50 Ohms	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	Female	6000 MHz	90 °C	-40 °C	IPEX MHF1 LK to SMA	SMA Jack	Female	Black	50 Ohms	Bulkhead - Front Side Nut
Lighthorse Technologies, Inc CB1.13-2IPX4L-3IN	Free Hanging (In-Line)	76.2 mm	3 in	Shielded	IPEX MHF4L Plug Right Angle	50 Ohms	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	Female	12 GHz	90 °C	-40 °C	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug Right Angle	Female	Black	50 Ohms
Lighthorse Technologies, Inc CB1.13-2IPX4L-4IN	Free Hanging (In-Line)	101.6 mm	4 in	Shielded	IPEX MHF4L Plug Right Angle	50 Ohms	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	Female	12 GHz	90 °C	-40 °C	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug Right Angle	Female	Black	50 Ohms
Lighthorse Technologies, Inc CB1.13-2IPX4L-4.5IN	Free Hanging (In-Line)	114.3 mm	4.5 in	Shielded	IPEX MHF4L Plug Right Angle	50 Ohms	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	Female	12 GHz	90 °C	-40 °C	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug Right Angle	Female	Black	50 Ohms
Lighthorse Technologies, Inc CB1.13-2IPX-7.5IN-6O	Free Hanging (In-Line)			Opposite Orientation Shielded	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	50 Ohms	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	Female	9 GHz	90 °C	-40 °C	I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC)	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	Female	Black	50 Ohms		190.5 mm	7.5 in
Lighthorse Technologies, Inc CB1.13-2IPX4L-8.5IN	Free Hanging (In-Line)			Shielded	IPEX MHF4L Plug Right Angle	50 Ohms	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	Female	12 GHz	90 °C	-40 °C	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug Right Angle	Female	Black	50 Ohms
Lighthorse Technologies, Inc CB1.13-2IPX4L-7.5IN	Free Hanging (In-Line)			Shielded	IPEX MHF4L Plug Right Angle	50 Ohms	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	Female	12 GHz	90 °C	-40 °C	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug Right Angle	Female	Black	50 Ohms		190.5 mm	7.5 in
Lighthorse Technologies, Inc CB1.13-2IPX-3IN-6O	Free Hanging (In-Line)	76.2 mm	3 in	Opposite Orientation Shielded	U.FL (UMCC) IPEX MHF1 Plug Right Angle	50 Ohms	1.13mm OD Coaxial Cable	Free Hanging (In-Line)	Female	9 GHz	90 °C	-40 °C	IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	IPEX MHF1 Plug Right Angle U.FL (UMCC)	Female	Black	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.07
		10	$ 4.77
		25	$ 4.51
		50	$ 4.27
		100	$ 4.06
		250	$ 3.69
		500	$ 3.38
		1000	$ 3.12

Description

General part information

CB1.13 Series

Cable Assembly Coaxial IPEX MHF4L to IPEX MHF4L 1.13mm OD Coaxial Cable 7.500" (190.50mm)
