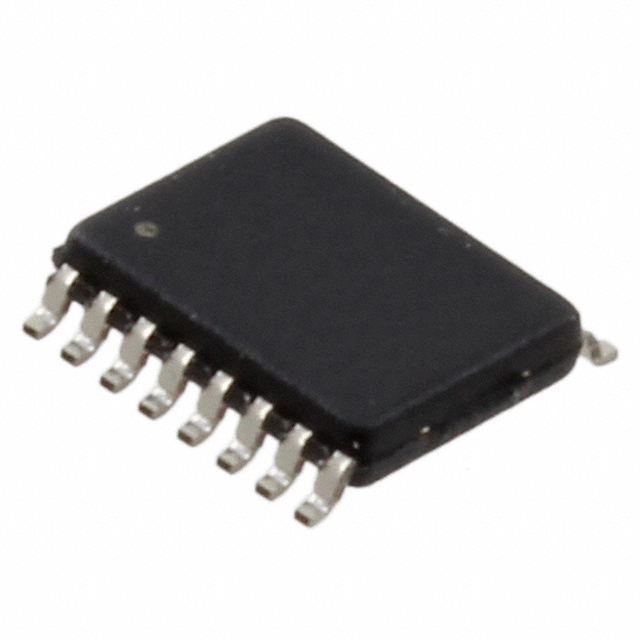

TC74VHC238FK(EL,K)
ActiveToshiba Semiconductor and Storage
IC DECODER 1 X 3:8 16VSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC74VHC238FK(EL,K)
ActiveToshiba Semiconductor and Storage
IC DECODER 1 X 3:8 16VSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC74VHC238FK(EL,K) |
|---|---|
| Circuit | 1 x 3:8 |
| Current - Output High, Low [custom] | 8 mA |
| Current - Output High, Low [custom] | 8 mA |
| Independent Circuits | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-VFSOP |
| Package / Case [x] | 0.118 in |
| Package / Case [y] | 3 mm |
| Supplier Device Package | 16-VSSOP |
| Type | Decoder |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2 V |
| Voltage Supply Source | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.23 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.63 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 1.23 | ||
| 10 | $ 0.75 | |||
| 25 | $ 0.63 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 2500 | $ 0.31 | ||
| 5000 | $ 0.29 | |||
| 7500 | $ 0.28 | |||
| 12500 | $ 0.27 | |||
| 17500 | $ 0.26 | |||
| 25000 | $ 0.26 | |||
Description
General part information
74VHC238 Series
Decoder 1 x 3:8 16-VSSOP
Documents
Technical documentation and resources
