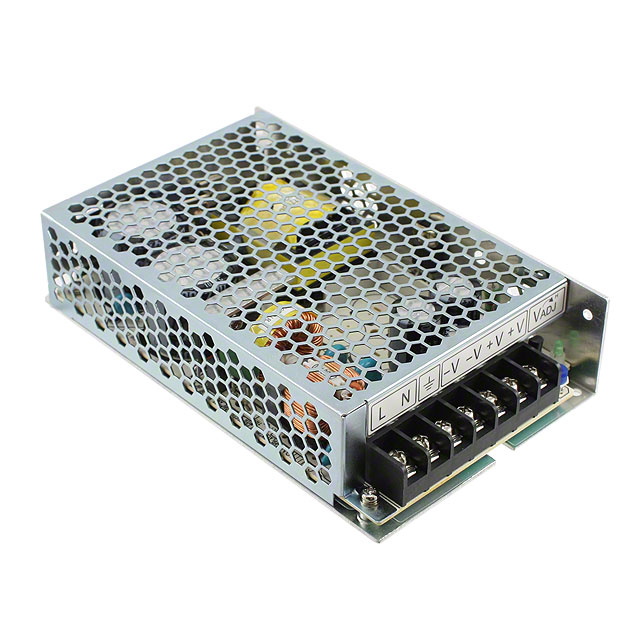

LS100-12
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 100 W, 12 V, 8.5 A
Deep-Dive with AI
Search across all available documentation for this part.
LS100-12
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 100 W, 12 V, 8.5 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LS100-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Features | Universal Input, Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 6.3 " |
| Size / Dimension [x] | 160 mm |
| Size / Dimension [y] | 3.8 " |
| Size / Dimension [y] | 96.5 mm |
| Size / Dimension [z] | 38.1 mm |
| Size / Dimension [z] | 1.5 " |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 88 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LS100 Series
The LS10012 is a LS-series 100W 12V 8.5A single-output compact AC/DC switching Power Supply is compact size, wide operating temperatures, low and high voltage full line up. It is smaller than current models in which can give more flexibility in design, this compact design is ideal for indoor display, self service kiosk and vending machines.
