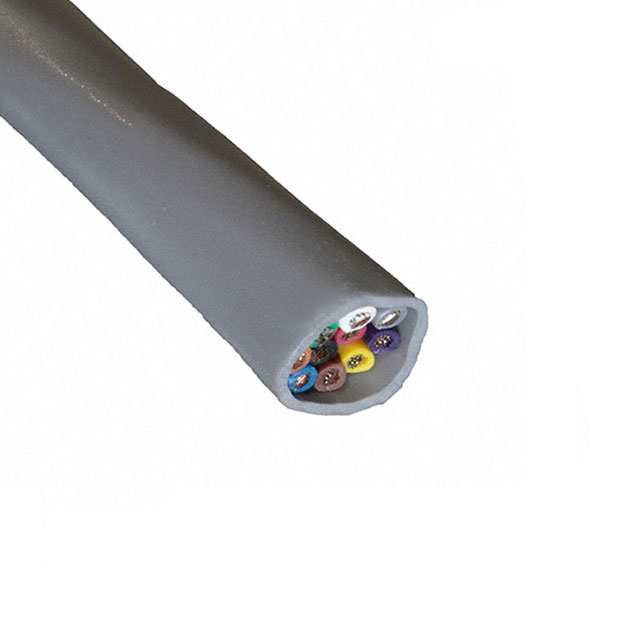

M33410 SL005

Active

ALPHA WIRE

CABLE 10COND 20AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 10COND 20AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M33410 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	8.13 mm
Jacket (Insulation) Diameter [diameter]	0.32 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2509
Voltage	300 V
Wire Gauge	20 AWG

Part	Voltage	Jacket (Insulation) Material	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket Color	Conductor Material	Conductor Insulation	Number of Conductors	Wire Gauge	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
ALPHA WIRE M33410 SL199	300 V	Poly-Vinyl Chloride (PVC)	914.4 m	3000 ft	0.02 in	0.508 mm	Multi-Conductor	Slate	Copper Tinned	Poly-Vinyl Chloride (PVC)	10	20 AWG	UL Style 2509	-20 C	80 C	8.13 mm	0.32 in	28	7
ALPHA WIRE M33410 SL005	300 V	Poly-Vinyl Chloride (PVC)			0.02 in	0.508 mm	Multi-Conductor	Slate	Copper Tinned	Poly-Vinyl Chloride (PVC)	10	20 AWG	UL Style 2509	-20 C	80 C	8.13 mm	0.32 in	28	7	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Conductor Multi-Conductor Cable Slate 20 AWG 100.0' (30.5m)
