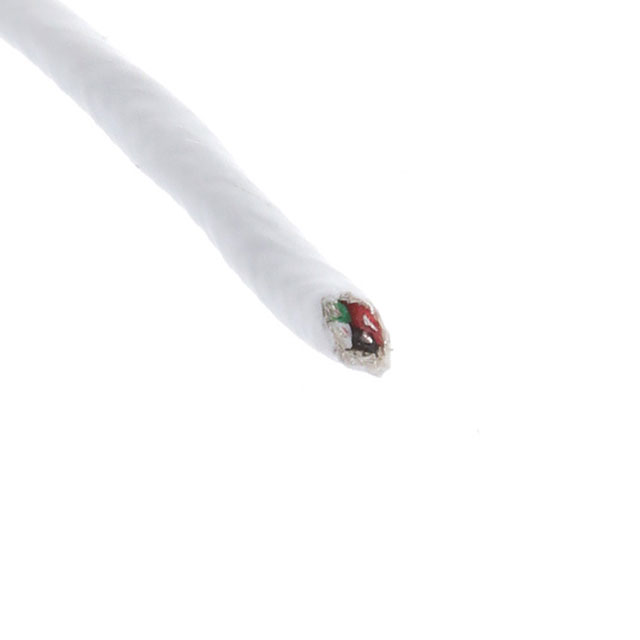

M1224 WH005

Active

ALPHA WIRE

CABLE 4CON 22AWG WHT SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4CON 22AWG WHT SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M1224 WH005

Cable Type	Multi-Conductor
Conductor Insulation	Polytetrafluoroethylene (PTFE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Jacket (Insulation) Diameter [diameter]	0.167 "
Jacket (Insulation) Diameter [diameter]	4.24 mm
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.0118 in
Jacket (Insulation) Thickness	0.3 mm
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Shield Coverage	Conductor Strand [custom]	Conductor Strand	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Insulation	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Conductor Material	Length [x]	Length [x]	Cable Type
ALPHA WIRE M1224 WH005	Polytetrafluoroethylene (PTFE)	4	0.167 "	4.24 mm	Braid	85 %	19 Strands	34 AWG	0.0118 in	0.3 mm	600 V	Polytetrafluoroethylene (PTFE)	22 AWG	-55 °C	200 °C	Copper Silver Coated	Copper Tinned	30.5 m	100 ft	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 669.04

General part information

4 Conductor Multi-Conductor Cable White 22 AWG Braid 100.0' (30.5m)
