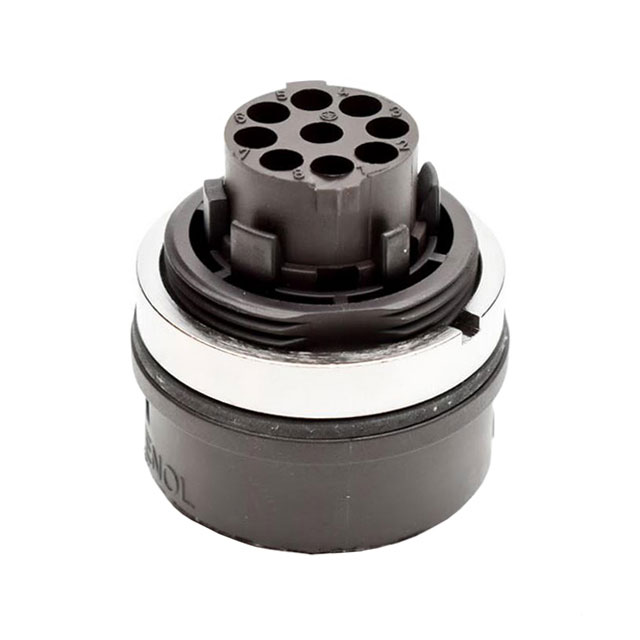

C01610N0080061

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 9POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 9POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	C01610N0080061

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.6 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Note	Contacts Not Included
Number of Positions	9, 8
Number of Positions [custom]	PE
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shielding	Unshielded
Type	For Female Sockets

Part	Connector Type	Shell Size - Insert	Contact Type	Material Flammability Rating	Note	Contact Shape	Ingress Protection	Orientation	Type	Housing Color	Shell Material	Fastening Type	Contact Size	Number of Positions	Number of Positions [custom]	Shielding	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C01610N0080061	Receptacle Housing	1	Crimp	UL94 V-0	Contacts Not Included	Circular	IP65 - Dust Tight Water Resistant	N	For Female Sockets	Black	Polyamide (PA66) Nylon 6/6	Bayonet Lock	1.6 mm	8 9	PE	Unshielded	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 (8 + PE) Position Circular Connector Receptacle Housing Panel Mount
