AER35-35-23CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

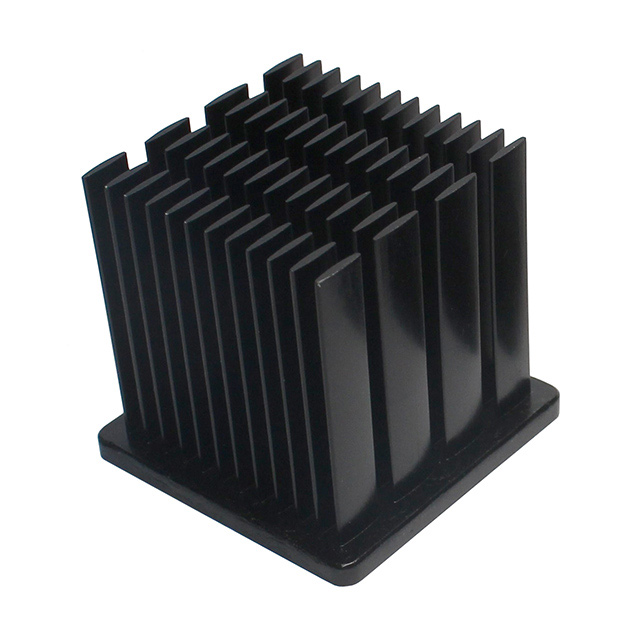

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA01 Laminating Adhesive Datasheet

AER35-35-23CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

DocumentsA01 Laminating Adhesive Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AER35-35-23CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height	22.61 mm
Fin Height	0.89 in
Length	1.362 in
Length	34.6 mm
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	200 LFM, 2.42 °C/W
Thermal Resistance @ Natural	9.3 °C/W
Type	Top Mount
Width	34.6 mm
Width	1.362 in

AER35 Series

Part	Shelf Life	Attachment Method	Material	Material Finish	Width	Width	Length	Length	Thermal Resistance @ Natural	Type	Package Cooled	Shape	Fin Height	Fin Height	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]
Tusonix a Subsidiary of CTS Electronic Components AER35-35-33CB/A01	24 Months	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	34.6 mm	1.362 in	1.362 in	34.6 mm	8 °C/W	Top Mount	ASIC BGA CPU LGA	Fins Square	1.283 "	32.6 mm	1.82 °C/W 200 LFM
Tusonix a Subsidiary of CTS Electronic Components AER35-35-23CB/A01	24 Months	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	34.6 mm	1.362 in	1.362 in	34.6 mm	9.3 °C/W	Top Mount	ASIC BGA CPU LGA	Fins Square	0.89 in	22.61 mm	2.42 °C/W 200 LFM
Tusonix a Subsidiary of CTS Electronic Components AER35-35-21CB/A01	24 Months	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	34.6 mm	1.362 in	1.362 in	34.6 mm	9.6 °C/W	Top Mount	ASIC BGA CPU LGA	Fins Square			2.62 °C/W 200 LFM	20.6 mm	0.811 in
Tusonix a Subsidiary of CTS Electronic Components AER35-35-28CB/A01	24 Months	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	34.6 mm	1.362 in	1.362 in	34.6 mm	8.7 °C/W	Top Mount	ASIC BGA CPU LGA	Fins Square			2.02 °C/W	27.6 mm	1.087 in
Tusonix a Subsidiary of CTS Electronic Components AER35-35-12CB/A01	24 Months	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	34.6 mm	1.362 in	1.362 in	34.6 mm	11 °C/W	Top Mount	ASIC BGA CPU LGA	Fins Square			3.32 °C/W 200 LFM
Tusonix a Subsidiary of CTS Electronic Components AER35-35-18CB/A01	24 Months	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	34.6 mm	1.362 in	1.362 in	34.6 mm	10 °C/W	Top Mount	ASIC BGA CPU LGA	Fins Square			2.82 °C/W
Tusonix a Subsidiary of CTS Electronic Components AER35-35-15CB/A01	24 Months	Thermal Tape Adhesive (Included)	Aluminum Alloy	Black Anodized	34.6 mm	1.362 in	1.362 in	34.6 mm	10.5 °C/W	Top Mount	ASIC BGA CPU LGA	Fins Square			3.02 °C/W 200 LFM	14.6 mm	0.575 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 6.30

Description

General part information

AER35 Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount

Documents

Technical documentation and resources

A01 Laminating Adhesive

Datasheet
