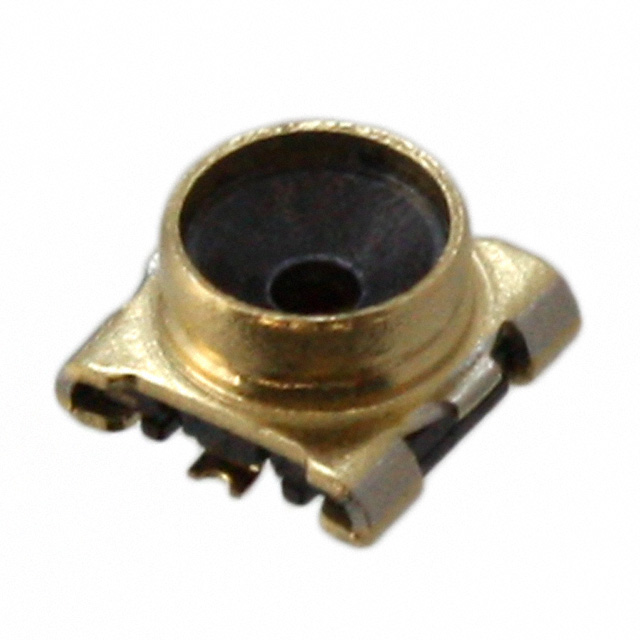

MM8130-2600RB8
ActiveMurata Power Solutions Inc.
CONN SWF RCPT STR 50 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
MM8130-2600RB8
ActiveMurata Power Solutions Inc.
CONN SWF RCPT STR 50 OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MM8130-2600RB8 |
|---|---|
| Connector Style | SWF |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Features | Internal Switch |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.23 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.15 | |||
| Tape & Reel (TR) | 8000 | $ 0.15 | ||
| 16000 | $ 0.14 | |||
| 24000 | $ 0.13 | |||
| 40000 | $ 0.13 | |||
| 56000 | $ 0.13 | |||
| 80000 | $ 0.12 | |||
Description
General part information
MM8130 Series
SWF Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
