VCA2617RHBR
Active2-CHANNEL SMALLER PACKAGE VARIABLE GAIN AMPLIFIER
Deep-Dive with AI
Search across all available documentation for this part.
VCA2617RHBR
Active2-CHANNEL SMALLER PACKAGE VARIABLE GAIN AMPLIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VCA2617RHBR |
|---|---|
| Current - Output / Channel | 60 mA |
| Gain Bandwidth Product | 50 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Differential |

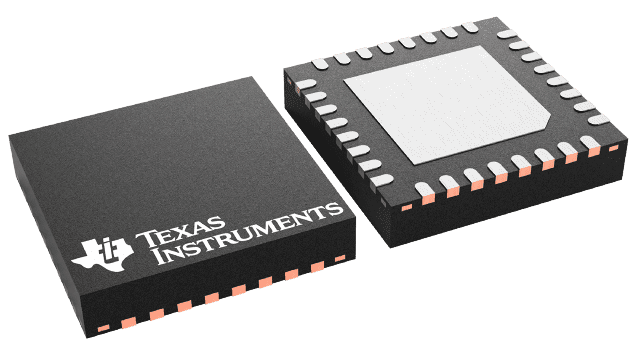

| Package / Case | 32-VFQFN Exposed Pad |
| Slew Rate | 100 V/µs |
| Supplier Device Package | 32-VQFN (5x5) |
| Voltage - Supply Span (Max) [Max] | 5.25 V |
| Voltage - Supply Span (Min) [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 8.72 | |
| Texas Instruments | LARGE T&R | 1 | $ 12.87 | |
| 100 | $ 11.24 | |||
| 250 | $ 8.67 | |||
| 1000 | $ 7.75 | |||
Description
General part information
VCA2617 Series
The VCA2617 is a dual-channel, continuously variable, voltage-controlled gain amplifier well-suited for a variety of ultrasound systems as well as applications in proximity detectors and test equipment. The VCA2617 uses a true variable-gain amplifier architecture, achieving very good noise performance at low gains, while not sacrificing high gain distortion performance.
Following a linear-in-dB response, the VCA2617 gain can be varied over a 48dB range with a 0.2V to 2.3V control voltage. Two separate high-impedance control inputs allow for a channel independent variation of the gains. Each channel of the VCA2617 can be configured to provide a gain range of -10dB to 38dB, or -16dB to 32dB, depending on the gain select pin (HG)\. This post-gain feature allows the user to optimize the output swing of VCA2617 for a variety of high-speed analog-to-digital converters (ADC). As a means to improve system overload recovery time, the VCA2617 also provides an internal clamping circuitry where an externally applied voltage sets the desired output clamping level.
The VCA2617 operates on a single +5V supply while consuming only 52mW per channel. It is available in a small QFN-32 package (5x5mm).
