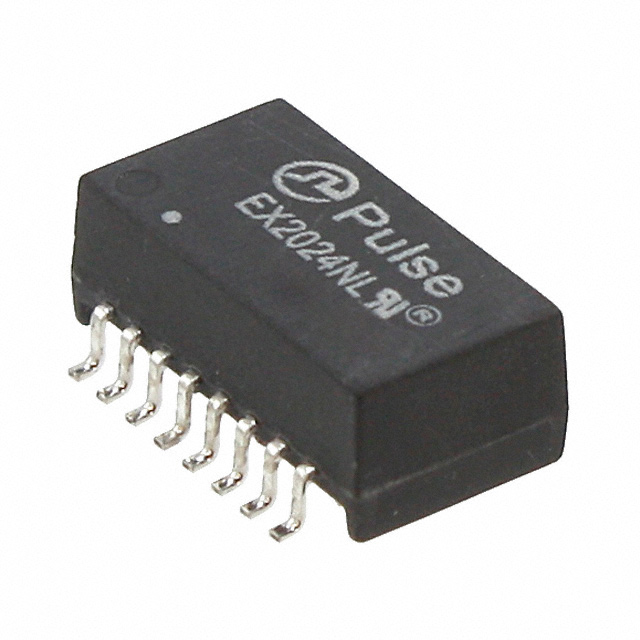

EX2024NL

Active

Pulse Electronics

XFRMR LAN ISOL 10BASET 1:2.5 SMD

Search across all available documentation for this part.

Active

Pulse Electronics

XFRMR LAN ISOL 10BASET 1:2.5 SMD

Technical Specifications

Parameters and characteristics for this part

Specification	EX2024NL

Height - Seated (Max) [Max] [z]	0.21 in
Height - Seated (Max) [Max] [z]	5.33 mm
Inductance	350 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	0.5 in
Size / Dimension [x]	12.7 mm
Size / Dimension [y]	0.285 "
Size / Dimension [y]	7.24 mm
Transformer Type	Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary [x]	1 CT, 1 CT
Turns Ratio - Primary:Secondary [y]	2.5 CT, 1 CT
Weight	0.85 g
Weight	0.03 oz

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Turns Ratio - Primary:Secondary [x]	Turns Ratio - Primary:Secondary [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Weight	Weight	Transformer Type
Pulse Electronics EX2024FNL	85 °C	-40 °C	Surface Mount	1 CT 1 CT	1 CT 2.5 CT	8.89 mm	0.498 "	12.65 mm	0.35 "	35 µH 200 µH	5.08 mm	0.2 "
Pulse Electronics EX2024NL	70 °C	0 °C	Surface Mount	1 CT 1 CT	1 CT 2.5 CT	7.24 mm	0.5 in	12.7 mm	0.285 "	350 µH	5.33 mm	0.21 in	0.85 g	0.03 oz	Isolation and Data Interface (Encapsulated)
Pulse Electronics EX2024NLT	70 °C	0 °C	Surface Mount	1 CT 1 CT	1 CT 2.5 CT	7.24 mm	0.5 in	12.7 mm	0.285 "	350 µH	5.33 mm	0.21 in	0.85 g	0.03 oz	Isolation and Data Interface (Encapsulated)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

350µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:2.5CT Transmitter, 1CT:1CT Receiver Surface Mount
