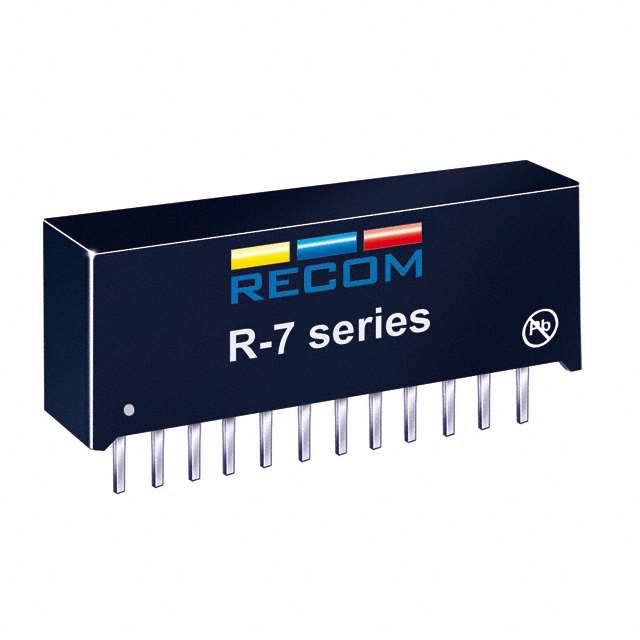

R-739.0D - R-7x series

R-739.0D

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS DC/DC REG 12-28VIN 7.0-11VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

R-739.0D - R-7x series

R-739.0D

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS DC/DC REG 12-28VIN 7.0-11VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R-739.0D

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	3 A
Efficiency	96 %
Features	Remote On/Off, SCP
Mounting Type	Through Hole, Right Angle
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	12-SIP Module
Power (Watts)	27 W
Size / Dimension [x]	1.27 in
Size / Dimension [x]	32.2 mm
Size / Dimension [y]	15 mm
Size / Dimension [y]	0.59 in
Size / Dimension [z]	9.1 mm
Size / Dimension [z]	0.36 in
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	28 V
Voltage - Output 1	9 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 29.30
		5	$ 28.62
		10	$ 28.39
		25	$ 27.95
		50	$ 26.62
		100	$ 25.10
		250	$ 23.96
Sager	N/A	1	$ 29.30
		5	$ 28.35
		10	$ 27.04
		25	$ 26.24
		50	$ 25.84
		100	$ 25.10
		250	$ 23.44

Description

General part information

R-7xxxP_D Series

Non-Isolated DC/DC Converters DC/DC REG 4.5-28Vin 2.5-5.5out

Documents

Technical documentation and resources

Datasheet

Datasheet

R-7xxxP_D Series

Non-Isolated DC/DC Converters DC/DC REG 4.5-28Vin 2.5-5.5out

Part	Power (Watts)	Efficiency	Voltage - Input (Min) [Min]	Control Features	Number of Outputs	Features	Voltage - Output 1	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications
RECOM Power R-726.5P	13 W	97 %	8.5 V	Active High Enable	1	Remote On/Off SCP	6.5 V	28 V	Non-Isolated PoL Module	2 A	0.59 in	15 mm	9.1 mm	32.2 mm	0.36 "	1.27 in	12-SIP Module	Through Hole	85 °C	-40 °C	ITE (Commercial)
RECOM Power R-739.0D	27 W	96 %		Active High Enable	1	Remote On/Off SCP	9 V	28 V	Non-Isolated PoL Module	3 A	0.36 in	9.1 mm	15 mm	32.2 mm	0.59 in	1.27 in	12-SIP Module	Through Hole Right Angle	85 °C	-40 °C	ITE (Commercial)
RECOM Power R-7315P	45 W	97 %	19 V	Active High Enable	1	Remote On/Off SCP	15 V	28 V	Non-Isolated PoL Module	3 A	0.59 in	15 mm	9.1 mm	32.2 mm	0.36 "	1.27 in	12-SIP Module	Through Hole	85 °C	-40 °C	ITE (Commercial)
RECOM Power R-743.3P	13 W	93 %	4.5 V	Active High Enable	1	OCP Remote On/Off SCP	3.3 V	28 V	Non-Isolated PoL Module	4 A	0.59 in	15 mm	9.1 mm	32.2 mm	0.36 "	1.27 in	12-SIP Module	Through Hole	85 °C	-40 °C	ITE (Commercial)
RECOM Power R-7215D	30 W	97 %	19 V	Active High Enable	1	Remote On/Off SCP	15 V	28 V	Non-Isolated PoL Module	2 A	0.36 in	9.1 mm	15 mm	32.2 mm	0.59 in	1.27 in	12-SIP Module	Through Hole Right Angle	85 °C	-40 °C	ITE (Commercial)
RECOM Power R-739.0P	27 W	96 %		Active High Enable	1	Remote On/Off SCP	9 V	28 V	Non-Isolated PoL Module	3 A	0.59 in	15 mm	9.1 mm	32.2 mm	0.36 "	1.27 in	12-SIP Module	Through Hole	85 °C	-40 °C	ITE (Commercial)
RECOM Power R-7315D	45 W	97 %	19 V	Active High Enable	1	Remote On/Off SCP	15 V	28 V	Non-Isolated PoL Module	3 A	0.36 in	9.1 mm	15 mm	32.2 mm	0.59 in	1.27 in	12-SIP Module	Through Hole Right Angle	85 °C	-40 °C	ITE (Commercial)
