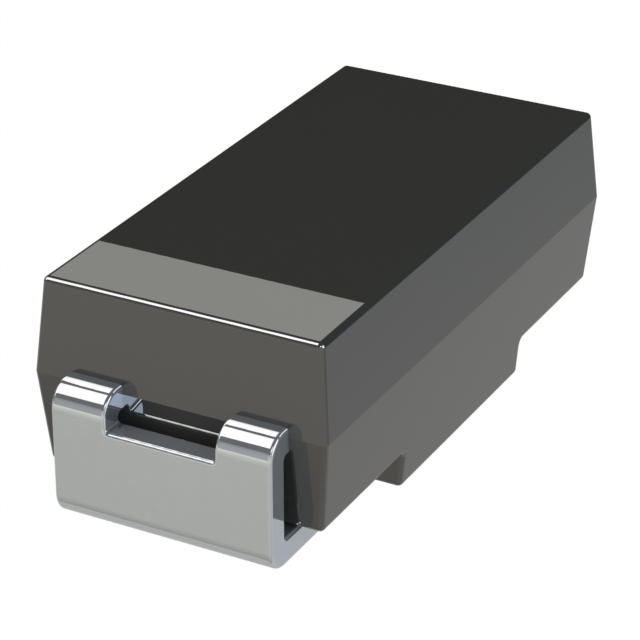

TCJK476M006R0400

Unknown

Kyocera AVX

CAP TANT POLY 47UF 6.3V 1206

Search across all available documentation for this part.

Unknown

Kyocera AVX

CAP TANT POLY 47UF 6.3V 1206

Technical Specifications

Parameters and characteristics for this part

Specification	TCJK476M006R0400

Capacitance	47 µF
ESR (Equivalent Series Resistance)	400 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	K
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

Part	ESR (Equivalent Series Resistance)	Voltage - Rated	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lifetime @ Temp.	Features	Manufacturer Size Code	Mounting Type	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]
Kyocera AVX TCJK226M006R0400	400 mOhm	6.3 V	Molded	0.039 "	1 mm	1206 (3216 Metric)	20 %	0.063 in	1.6 mm	0.126 "	3.2 mm	2000 Hrs	General Purpose	K	Surface Mount	22 µF	105 ░C	-55 °C
Kyocera AVX TCJK476M006R0400	400 mOhm	6.3 V	Molded	0.039 "	1 mm	1206 (3216 Metric)	20 %	0.063 in	1.6 mm	0.126 "	3.2 mm	2000 Hrs	General Purpose	K	Surface Mount	47 µF	105 ░C	-55 °C
Kyocera AVX TCJK226M006R0400E	400 mOhm	6.3 V	Molded	0.039 "	1 mm	1206 (3216 Metric)	20 %	0.063 in	1.6 mm	0.126 "	3.2 mm	2000 Hrs	General Purpose	K	Surface Mount	22 µF	105 ░C	-55 °C
Kyocera AVX TCJK475M010R0300	300 mOhm	10 V	Molded	0.039 "	1 mm	1206 (3216 Metric)	20 %	0.063 in	1.6 mm	0.126 "	3.2 mm	2000 Hrs	General Purpose	K	Surface Mount	4.7 µF	105 ░C	-55 °C
Kyocera AVX TCJK476M006R0150E	150 mOhm	6.3 V	Molded	0.039 "	1 mm	1206 (3216 Metric)	20 %	0.063 in	1.6 mm	0.126 "	3.2 mm	2000 Hrs	General Purpose	K	Surface Mount	47 µF	105 ░C	-55 °C
Kyocera AVX TCJK476M006S0150	150 mOhm	6.3 V	Molded	0.039 "	1 mm	1206 (3216 Metric)	20 %	0.063 in	1.6 mm	0.126 "	3.2 mm	2000 Hrs	General Purpose	K	Surface Mount	47 µF	105 ░C	-55 °C
Kyocera AVX TCJK476M006R0200E	200 mOhm	6.3 V	Molded	0.039 "	1 mm	1206 (3216 Metric)	20 %	0.063 in	1.6 mm	0.126 "	3.2 mm	2000 Hrs	General Purpose	K	Surface Mount	47 µF	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

47 µF Molded Tantalum Polymer Capacitor 6.3 V 1206 (3216 Metric) 400mOhm @ 100kHz
