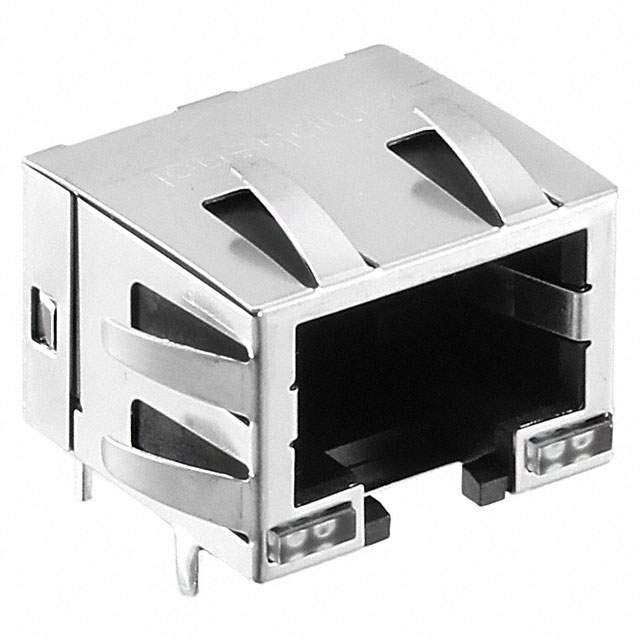

RJE73-188-004A1

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJE73-188-004A1

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJE73-188-004A1

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Board Guide
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

RJE73188 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Type	Features	LED Color	Contact Finish Thickness	Contact Finish Thickness	Orientation	Contact Finish	Termination	Shielding	Number of Rows	Housing Material	Number of Ports	Tab Direction	Number of Positions/Contacts	Connector Type
Amphenol ICC (Commercial Products) RJE73-188-00340	85 °C	-55 °C	Phosphor Bronze	Through Hole	Board Guide	Green Yellow	0.76 Ám	30 Áin	90 °	Gold	Solder	Shielded EMI Finger	1	Thermoplastic	1	Down	8p8c (RJ45 Ethernet)	Jack
Amphenol ICC (Commercial Products) RJE7318800470	85 °C	-55 °C	Phosphor Bronze	Through Hole	Board Guide	Green Red	1.27 µm	50 µin	90 °	Gold	Solder	Shielded	1	Thermoplastic	1	Down	8p8c (RJ45 Ethernet)	Jack
Amphenol ICC (Commercial Products) RJE73188004K0	85 °C	-55 °C	Phosphor Bronze	Through Hole	Board Guide	Orange Yellow - Green	1.27 µm	50 µin	90 °	Gold	Solder	Shielded	1	Thermoplastic	1	Down	8p8c (RJ45 Ethernet)	Jack
Amphenol ICC (Commercial Products) RJE73-188-004A1	85 °C	-55 °C	Phosphor Bronze	Through Hole	Board Guide	Green Yellow	1.27 µm	50 µin	90 °	Gold	Solder	Shielded EMI Finger	1	Thermoplastic	1	Down	8p8c (RJ45 Ethernet)	Jack
Amphenol ICC (Commercial Products) RJE73188001H0	85 °C	-55 °C	Phosphor Bronze	Through Hole	Board Guide	Green Yellow - Green	0.152 Ám	6 Áin	90 °	Gold	Solder	Shielded	1	Thermoplastic	1	Down	8p8c (RJ45 Ethernet)	Jack
Amphenol ICC (Commercial Products) RJE73-188-00310	85 °C	-55 °C	Phosphor Bronze	Through Hole	Board Guide	Yellow - Green	0.76 Ám	30 Áin	90 °	Gold	Solder	Shielded EMI Finger	1	Thermoplastic	1	Down	8p8c (RJ45 Ethernet)	Jack
Amphenol ICC (Commercial Products) RJE73188001P0	85 °C	-55 °C	Phosphor Bronze	Through Hole	Board Guide	Green Green - Red	0.152 Ám	6 Áin	90 °	Gold	Solder	Shielded	1	Thermoplastic	1	Down	8p8c (RJ45 Ethernet)	Jack
Amphenol ICC (Commercial Products) RJE7318800141	85 °C	-55 °C	Phosphor Bronze	Through Hole	Board Guide	Green Yellow	0.152 Ám	6 Áin	90 °	Gold	Solder	Shielded EMI Finger	1	Thermoplastic	1	Down	8p8c (RJ45 Ethernet)	Jack
Amphenol ICC (Commercial Products) RJE73-188-00440	85 °C	-55 °C	Phosphor Bronze	Through Hole	Board Guide	Green Yellow	1.27 µm	50 µin	90 °	Gold	Solder	Shielded EMI Finger	1	Thermoplastic	1	Down	8p8c (RJ45 Ethernet)	Jack
Amphenol ICC (Commercial Products) RJE73-188-00240	85 °C	-55 °C	Phosphor Bronze	Through Hole	Board Guide	Green Yellow	0.38 µm	15 µin	90 °	Gold	Solder	Shielded EMI Finger	1	Thermoplastic	1	Down	8p8c (RJ45 Ethernet)	Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.72
		10	$ 3.38
		25	$ 3.20
		50	$ 3.12
	Tape & Reel (TR)	160	$ 2.97
		320	$ 2.60
		480	$ 2.53
		800	$ 2.31
		1120	$ 2.16
		1600	$ 2.08
		4000	$ 2.01

Description

General part information

RJE73188 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
