PM20204VBNN

Active

METZ CONNECT USA Inc.

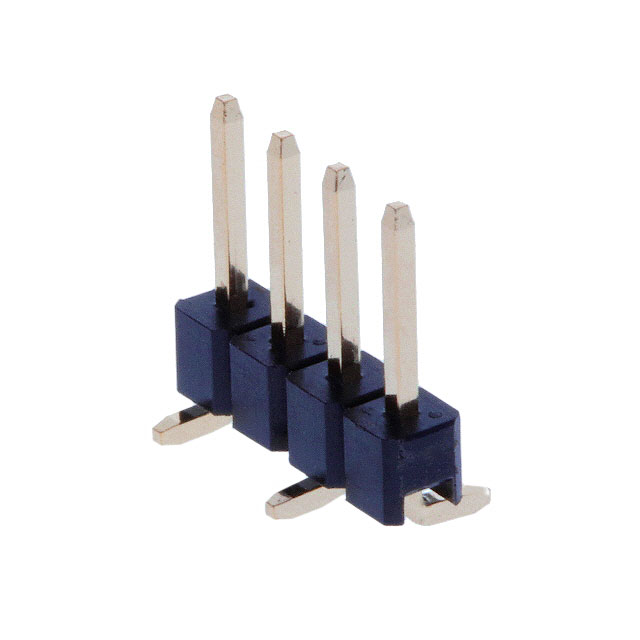

PIN HEADER, SMT, SINGLE ROW, .10

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

PIN HEADER, SMT, SINGLE ROW, .10

Technical Specifications

Parameters and characteristics for this part

Specification	PM20204VBNN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polyethylene
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Insulation Color	Number of Positions	Contact Type	Mounting Type	Contact Material	Contact Finish - Mating	Termination	Contact Finish Thickness - Mating	Shrouding	Fastening Type	Contact Shape	Insulation Material	Insulation Height [z]	Insulation Height [z]	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]
METZ CONNECT USA Inc. PM20204VBNN	Black	4	Male Pin	Surface Mount	Copper Zinc	Gold	Solder	Flash	Unshrouded	Push-Pull	Square	Polyethylene	0.098 in	2.5 mm	Header	6 mm	0.236 in	1	0.1 in	2.54 mm	All	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 4 position 0.100" (2.54mm)
