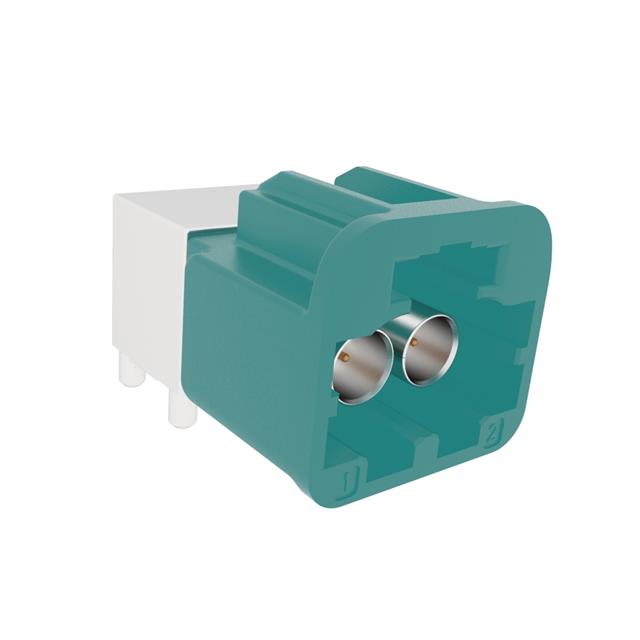

FM2-NZRP-PCB-1
ActiveAmphenol RF
AUTOMATE TYPE A MINI-FAKRA DUAL
Deep-Dive with AI
Search across all available documentation for this part.
FM2-NZRP-PCB-1
ActiveAmphenol RF
AUTOMATE TYPE A MINI-FAKRA DUAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FM2-NZRP-PCB-1 |
|---|---|
| Body Finish | Tin |
| Body Material | Zinc Alloy |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | Fakra, Miniature Coaxial, Twinaxial |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Latch Lock |
| Features | Code Z |
| Frequency - Max [Max] | 9 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.23 | |
| 10 | $ 5.66 | |||
| 25 | $ 5.36 | |||
| 50 | $ 5.23 | |||
| 100 | $ 4.98 | |||
| 250 | $ 4.36 | |||
| 500 | $ 4.23 | |||
| Digi-Reel® | 1 | $ 6.23 | ||
| 10 | $ 5.66 | |||
| 25 | $ 5.36 | |||
| 50 | $ 5.23 | |||
| 100 | $ 4.98 | |||
| 250 | $ 4.36 | |||
| 500 | $ 4.23 | |||
| Tape & Reel (TR) | 1700 | $ 3.49 | ||
Description
General part information
FM2-NZRP Series
Miniature Coaxial, Fakra, Twinaxial Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
