71M6511-DB

Obsolete

Analog Devices Inc./Maxim Integrated

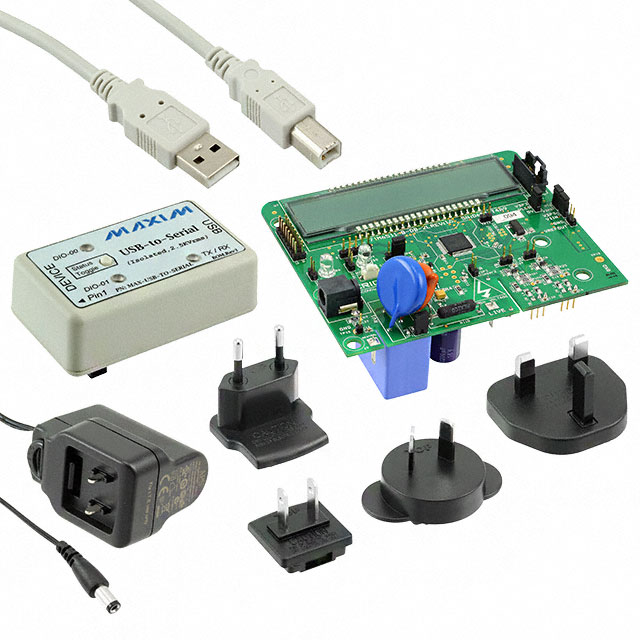

BOARD DEMO 71M6511 ENERGY METER

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

BOARD DEMO 71M6511 ENERGY METER

Technical Specifications

Parameters and characteristics for this part

Part	Input Impedance [Max]	Input Impedance [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - I/O High	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Package / Case	Measurement Error	Voltage - I/O Low	Meter Type	Supplied Contents	Type	Function
Analog Devices Inc./Maxim Integrated 71M6511-IGTR/F	90 kOhm	40 kOhm	Surface Mount	85 °C	-40 °C	2 V	3 V	3.6 V	64-LQFP (10x10)	64-LQFP	0.1 %	0.8 V	Single Phase
Analog Devices Inc./Maxim Integrated 71M6511-DB														Board(s) Cable(s) Power Supply	Power Management	Energy/Power Meter
Analog Devices Inc./Maxim Integrated 71M6511-IGT/F	90 kOhm	40 kOhm	Surface Mount	85 °C	-40 °C	2 V	3 V	3.6 V	64-LQFP (10x10)	64-LQFP	0.1 %	0.8 V	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

71M6511 Energy/Power Meter Power Management Evaluation Board

Technical documentation and resources
