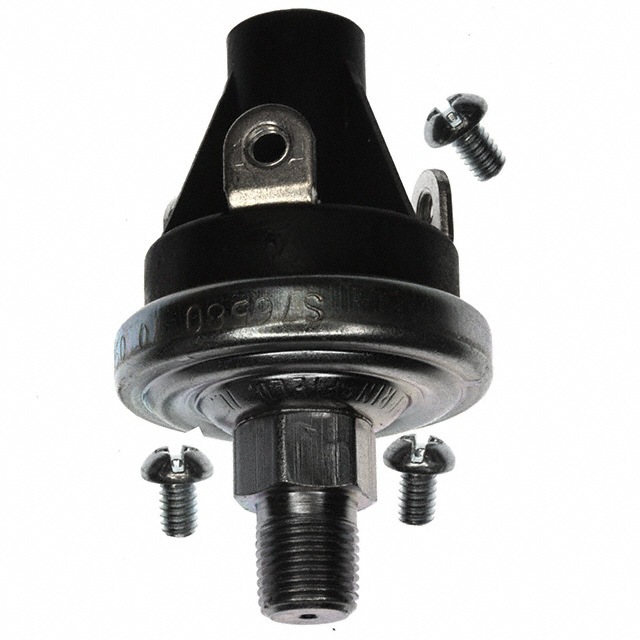

76580-00000100-01
ActiveHoneywell Sensing and Productivity Solutions
SWITCH PRESSURE D.C. 10PSI
Deep-Dive with AI
Search across all available documentation for this part.
76580-00000100-01
ActiveHoneywell Sensing and Productivity Solutions
SWITCH PRESSURE D.C. 10PSI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 76580-00000100-01 |
|---|---|
| Applications | Industrial Automation |
| Maximum Pressure [Max] | 500 PSI |
| Maximum Pressure [Max] | 3447.38 kPa |
| Operating Pressure | 10 PSI |
| Operating Pressure | 68.95 kPa |
| Operating Temperature [Max] | 121 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | SPDT |
| Package / Case | Cylinder |
| Port Size | 0.125 " |
| Port Size | 3.18 mm |
| Port Size | Male |
| Port Style | Threaded |
| Pressure Type | Switch |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 77.71 | |
| 5 | $ 68.61 | |||
Description
General part information
76580 Series
SWITCH PRESSURE D.C. 10PSI
Documents
Technical documentation and resources
