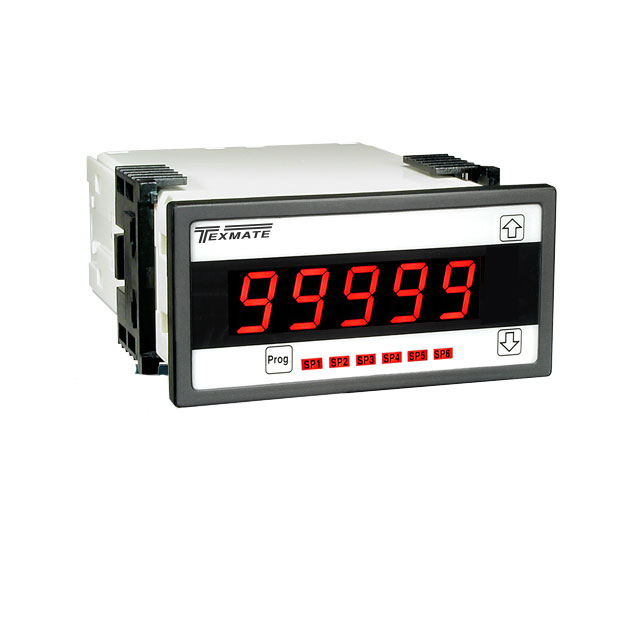

DI-50-DCV-ID01-AIC

Active

Texmate

PROCESS DC VOLTAGE 2V, 20V OR 20

Search across all available documentation for this part.

Active

Texmate

PROCESS DC VOLTAGE 2V, 20V OR 20

Technical Specifications

Parameters and characteristics for this part

Specification	DI-50-DCV-ID01-AIC

Display Characters - Height [z]	0.56 in
Display Characters - Height [z]	14.22 mm
Features	Configuration Utility Software
Measuring Range [Max]	200 V
Measuring Range [Min]	0 V
Measuring Type	Voltage
Number of Characters Per Row	5
Output Type	Analog, Relay (4)
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Plug In Screw Terminals
Type	Voltmeter
Voltage - Supply [Max]	265 VAC, 300 VDC
Voltage - Supply [Min]	95 VDC, 85 VAC

Part	Number of Characters Per Row	Features	Measuring Range [Min]	Measuring Range [Max]	Output Type	Display Characters - Height [z]	Display Characters - Height [z]	Type	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Type	Display Characters - Height	Display Characters - Height
Texmate DI-50-DCV-ID01-AIC	5	Configuration Utility Software	0 V	200 V	Analog Relay (4)	0.56 in	14.22 mm	Voltmeter	Plug In Screw Terminals	92 mm	45 mm	85 VAC 95 VDC	265 VAC 300 VDC	Voltage
Texmate DI-503-POWER-IW	5	Configuration Utility Software		5 A 600 V	Analog Relay (4)			Energy Monitor	Plug In Screw Terminals	92 mm	45 mm	85 VAC 95 VDC	265 VAC 300 VDC	Current Voltage Wattage	0.437 in	11.1 mm
Texmate DI-50-DCA-ID02	5	Configuration Utility Software	50 mV	100 mV	Analog Relay (4)	0.56 in	14.22 mm	Voltmeter	Plug In Screw Terminals	92 mm	45 mm	85 VAC 95 VDC	265 VAC 300 VDC	Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 998.00

General part information

Voltmeter Display Panel Mount
