309-60331

Active

HELLERMANNTYTON

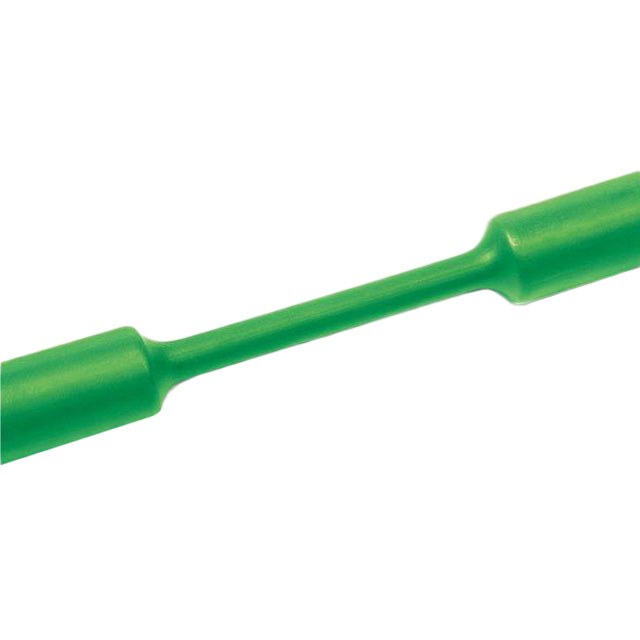

HEATSHRINK 1-1/2"X100' GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

309-60331

Active

HELLERMANNTYTON

HEATSHRINK 1-1/2"X100' GRN

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	309-60331

Color	Green
Features	Chemical Resistant, Solvent Resistant, Flame Retardant, Oil Resistant
Inner Diameter - Recovered [diameter]	19.1 mm
Inner Diameter - Recovered [diameter]	0.752 "
Inner Diameter - Supplied [diameter]	38.1 mm
Inner Diameter - Supplied [diameter]	1.5 in
Length [x]	30.5 m
Length [x]	100 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.99 mm
Recovered Wall Thickness	0.039 in
Shelf Life	60 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature	40 °C
Storage/Refrigeration Temperature	104 °F
Type	Tubing, Flexible

309-60 Series

Part	Shrink Temperature	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length	Length	Shelf Life	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Recovered Wall Thickness	Inner Diameter - Recovered	Inner Diameter - Recovered	Length [x]	Length [x]	Shelf Life Start
HELLERMANNTYTON 309-60311	70 °C	Black	135 °C	-55 °C	2 to 1	0.027 "	0.69 mm	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	0.375 in	9.53 mm	7.6 m	25 ft	60 Months	40 °C	104 °F	Polyolefin (PO) Irradiated	19.1 mm	0.752 in	Tubing Flexible
HELLERMANNTYTON 309-60302	70 °C	Black	135 °C	-55 °C	2 to 1		0.024 in	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	0.187 in	4.75 mm	15.2 m	50 ft	60 Months	40 °C	104 °F	Polyolefin (PO) Irradiated	9.5 mm	0.374 in	Tubing Flexible	0.61 mm
HELLERMANNTYTON 309-60109	70 °C	Black	135 °C	-55 °C	2 to 1	0.016 "	0.41 mm	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant			304.8 m	1000 ft	60 Months	40 °C	104 °F	Polyolefin (PO) Irradiated	1.6 mm	0.063 in	Tubing Flexible		0.032 "	0.82 mm
HELLERMANNTYTON 309-60107	70 °C	Clear	135 °C	-55 °C	2 to 1	0.016 "	0.41 mm	Chemical Resistant Oil Resistant Solvent Resistant						40 °C	104 °F	Polyolefin (PO) Irradiated	1.6 mm	0.063 in	Tubing Flexible		0.032 "	0.82 mm	30.5 m	100 ft
HELLERMANNTYTON 309-60296	70 °C	Yellow	135 °C	-55 °C	2 to 1	0.019 "	0.48 mm	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant			15.2 m	50 ft	60 Months	40 °C	104 °F	Polyolefin (PO) Irradiated	4.8 mm	0.189 in	Tubing Flexible		0.094 in	2.4 mm
HELLERMANNTYTON 309-60331	70 °C	Green	135 °C	-55 °C	2 to 1	0.039 in	0.99 mm	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	0.752 "	19.1 mm			60 Months	40 °C	104 °F	Polyolefin (PO) Irradiated	38.1 mm	1.5 in	Tubing Flexible				30.5 m	100 ft
HELLERMANNTYTON 309-60321	70 °C	Red	135 °C	-55 °C	2 to 1	0.039 in	0.99 mm	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	0.625 in	15.88 mm			60 Months	40 °C	104 °F	Polyolefin (PO) Irradiated	31.75 mm	1.25 in	Tubing Flexible				30.5 m	100 ft	Date of Manufacture
HELLERMANNTYTON 309-60310	70 °C	Black	135 °C	-55 °C	2 to 1	0.027 "	0.69 mm	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	0.315 in	8 mm	7.6 m	25 ft	60 Months	40 °C	104 °F	Polyolefin (PO) Irradiated	16 mm	0.63 in	Tubing Flexible
HELLERMANNTYTON 309-60327	70 °C	Red	135 °C	-55 °C	2 to 1	0.039 in	0.99 mm	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	0.752 "	19.1 mm			60 Months	40 °C	104 °F	Polyolefin (PO) Irradiated	38.1 mm	1.5 in	Tubing Flexible				30.5 m	100 ft
HELLERMANNTYTON 309-60299	70 °C	White	135 °C	-55 °C	2 to 1	0.022 "	0.56 mm	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	0.125 in		15.2 m	50 ft	60 Months	40 °C	104 °F	Polyolefin (PO) Irradiated	6.4 mm	0.252 "	Tubing Flexible			3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 155.81
