82400-4-BR

Active

O.C. White Co.

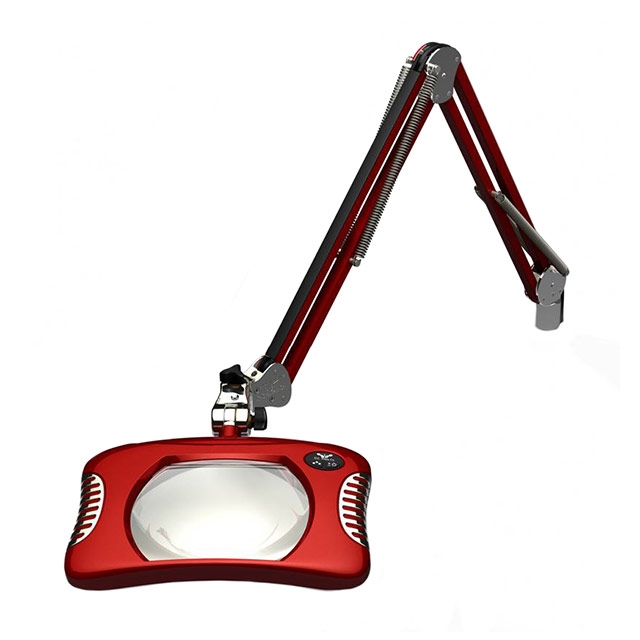

LAMP MAGNIFIER LED CLAMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

82400-4-BR

Active

O.C. White Co.

LAMP MAGNIFIER LED CLAMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	82400-4-BR

Arm [x]	43 in
Arm [x]	1092.2 mm
Bulb	LED, White
Color	Red
Cord Length	NEMA 5-15P
Cord Length	1.83 m
Cord Length	6 '
Lamp/Magnifier Type	Lamp, Magnifier
Lens Style/Size	4 Diopter
Lens Style/Size [x]	177.8 mm
Lens Style/Size [x]	7 "
Lens Style/Size [y]	5.25 "
Lens Style/Size [y]	133.35 mm
Voltage [Max]	240 V
Voltage [Min]	100 V

82400 Series

Part	Cord Length	Cord Length	Cord Length	Arm [x]	Arm [x]	Color	Bulb	Lens Style/Size [y]	Lens Style/Size [y]	Lens Style/Size [x]	Lens Style/Size	Lens Style/Size [x]	Lamp/Magnifier Type	Voltage [Max]	Voltage [Min]	Bulb
O.C. White Co. 82400-4-BR	NEMA 5-15P	1.83 m	6 '	43 in	1092.2 mm	Red	LED White	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Lamp Magnifier	240 V	100 V
O.C. White Co. 82400-4-USA				43 in	1092.2 mm	Blue Red White	LED White	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Lamp Magnifier	240 V	100 V
O.C. White Co. 82400-4-CM	NEMA 5-15P	1.83 m	6 '	43 in	1092.2 mm	Dark Gray	LED White	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Lamp Magnifier	240 V	100 V
O.C. White Co. 82400-4-UV-SB	NEMA 5-15P	1.83 m	6 '	43 in	1092.2 mm	Blue	LED UV White	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Lamp Magnifier	240 V	100 V	365 nm
O.C. White Co. 82400-4-S	NEMA 5-15P	1.83 m	6 '	43 in	1092.2 mm	Silver	LED White	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Lamp Magnifier	240 V	100 V
O.C. White Co. 82400-4-UV-B	NEMA 5-15P	1.83 m	6 '	43 in	1092.2 mm	Black	LED UV White	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Lamp Magnifier	240 V	100 V	365 nm
O.C. White Co. 82400-4-MW	NEMA 5-15P	1.83 m	6 '	43 in	1092.2 mm	White	LED White	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Lamp Magnifier	240 V	100 V
O.C. White Co. 82400-4-SW	NEMA 5-15P	1.83 m	6 '	43 in	1092.2 mm	White	LED White	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Lamp Magnifier	240 V	100 V
O.C. White Co. 82400-4-RG	NEMA 5-15P	1.83 m	6 '	43 in	1092.2 mm	Green	LED White	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Lamp Magnifier	240 V	100 V
O.C. White Co. 82400-4-B	NEMA 5-15P	1.83 m	6 '	43 in	1092.2 mm	Black	LED White	5.25 "	133.35 mm	177.8 mm	4 Diopter	7 "	Lamp Magnifier	240 V	100 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 599.00

Description

General part information

82400 Series

Lamp, Magnifier 4 Diopter (2x), 7.00" L x 5.25" W (177.80mm x 133.35mm) LED, White
