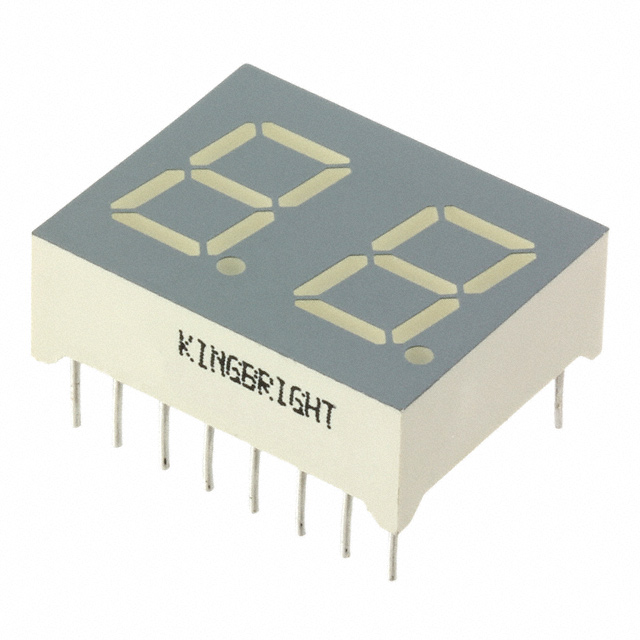

DA04-11EWA

Active

Kingbright

DISPLAY 7SEG 0.39" DBL RED 16DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DA04-11EWA

Active

Kingbright

DISPLAY 7SEG 0.39" DBL RED 16DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DA04-11EWA

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.39 in
Digit/Alpha Size	10 mm
Display Type	7-Segment
Number of Characters	2
Package / Case	0.5 in
Package / Case	16-DIP
Package / Case	12.7 mm
Power Dissipation (Max) [Max]	75 mw
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	627 nm

DA04-11 Series

Part	Color	Wavelength - Peak	Display Type	Power Dissipation (Max) [Max]	Package / Case	Package / Case	Package / Case	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Number of Characters	Millicandela Rating	Current - Test
Kingbright DA04-11SURKWA	Red	645 nm	7-Segment	75 mw	0.5 in	16-DIP	12.7 mm	Common Anode	0.39 in	10 mm	1.95 V	0.276 "	7 mm	16 mm	0.63 in	0.795 "	20.2 mm	2	54 mcd	20 mA
Kingbright DA04-11GWA	Green	565 nm	7-Segment	62.5 mW	0.5 in	16-DIP	12.7 mm	Common Anode	0.39 in	10 mm	2.2 V							2	8 mcd	20 mA
Kingbright DA04-11EWA	Red	627 nm	7-Segment	75 mw	0.5 in	16-DIP	12.7 mm	Common Anode	0.39 in	10 mm	2 V							2		20 mA
Kingbright DA04-11SYKWA	Yellow	590 nm	7-Segment	75 mw	0.5 in	16-DIP	12.7 mm	Common Anode	0.39 in	10 mm	2 V	0.276 "	7 mm	16 mm	0.63 in	0.795 "	20.2 mm	2	84 mcd	20 mA
Kingbright DA04-11SRWA	Red	660 nm	7-Segment	75 mw	0.5 in	16-DIP	12.7 mm	Common Anode	0.39 in	10 mm	1.85 V							2	29 mcd	20 mA
Kingbright DA04-11YWA	Yellow	590 nm	7-Segment	75 mw	0.5 in	16-DIP	12.7 mm	Common Anode	0.39 in	10 mm	2.1 V							2	5.8 mcd	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DA04-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 2V 20mA 0.630" H x 0.795" W x 0.276" D (16.00mm x 20.20mm x 7.00mm) 16-DIP (0.500", 12.70mm)
