BAV70-C

Active

Diotec Semiconductor

Search across all available documentation for this part.

Active

Diotec Semiconductor

Technical Specifications

Parameters and characteristics for this part

Specification	BAV70-C

Current - Average Rectified (Io) (per Diode)	215 mA
Current - Reverse Leakage @ Vr	2.5 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

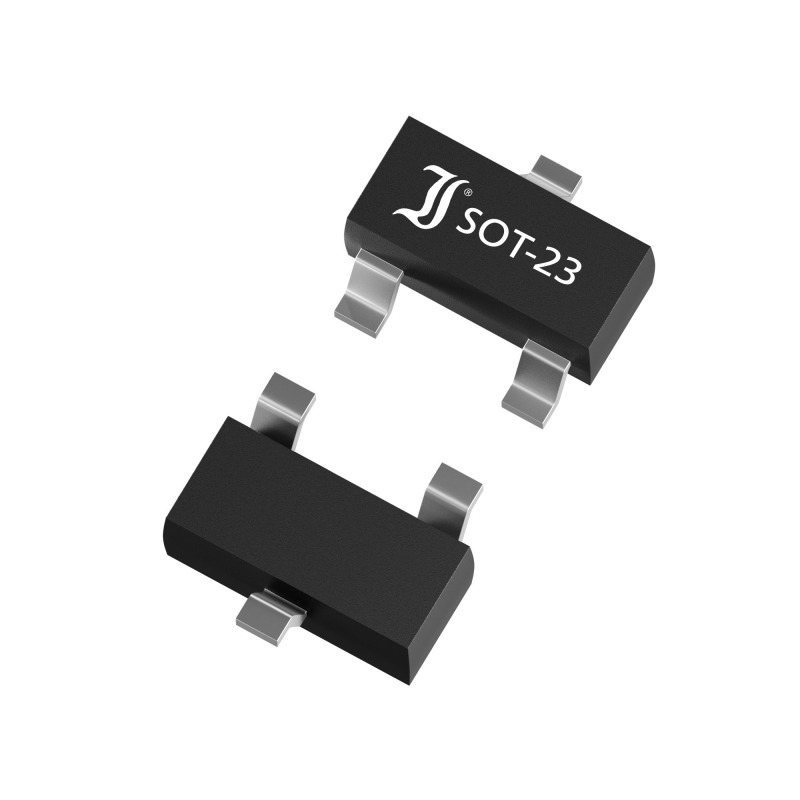

Package / Case	SOT-23-3, TO-236-3, SC-59
Reverse Recovery Time (trr)	6 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOT-23-3 (TO-236)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	70 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.25 V

Part	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Package / Case	Diode Configuration	Current - Reverse Leakage @ Vr	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Reverse Recovery Time (trr)	Mounting Type	Current - Average Rectified (Io) (per Diode)	Speed
Diotec Semiconductor BAV70-C	1.25 V	150 °C	-55 °C	Standard	SC-59 SOT-23-3 TO-236-3	1 Pair Common Cathode	2.5 µA	200 mA 500 ns	70 V	SOT-23-3 (TO-236)	6 ns	Surface Mount	215 mA
Diotec Semiconductor BAV70DW	1.25 V	150 °C	-55 °C	Standard	6-VSSOP SC-88 SOT-363	2 Pair Common Cathode	500 nA	200 mA	100 V	SOT-363	4 ns	Surface Mount	150 mA	Any Speed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.02

General part information

Diode Array 1 Pair Common Cathode 70 V 215mA Surface Mount TO-236-3, SC-59, SOT-23-3
