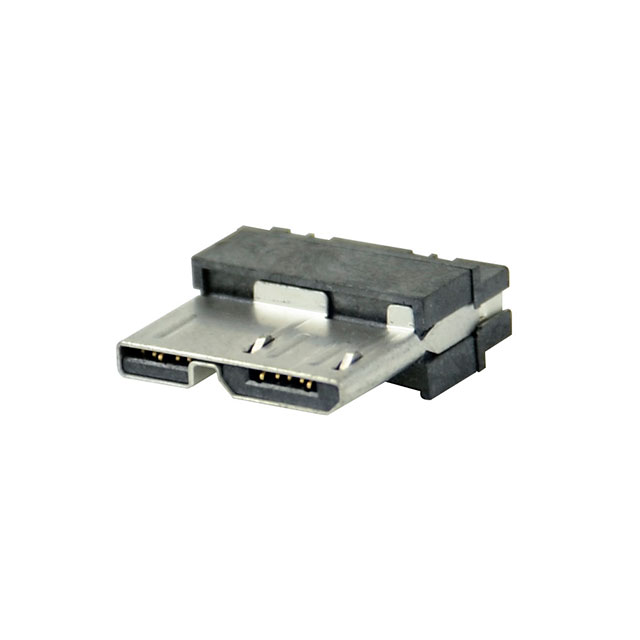

UP3-MIBV-4-CM

Active

CUI Devices

MICRO B, USB 3.2 GEN 1, 5 GBPS, 30 VAC, 1.8 A, VERTICAL, CABLE MOUNT, USB PLUG CONNECTOR

Search across all available documentation for this part.

Active

CUI Devices

MICRO B, USB 3.2 GEN 1, 5 GBPS, 30 VAC, 1.8 A, VERTICAL, CABLE MOUNT, USB PLUG CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	UP3-MIBV-4-CM

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating (Amps)	1.8 A
Gender	Plug
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Type	Free Hanging (In-Line)
Number of Contacts	10
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Steel
Shielding	Shielded
Termination	Solder
Voltage - Rated	30 VAC

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts	Gender	Shell/Shielding Material	Insulation Color	Number of Ports	Material Flammability Rating	Mating Cycles	Connector Type	Contact Finish	Current Rating (Amps)	Shielding	Termination	Voltage - Rated
CUI Devices UP3-MIBV-4-CM	Free Hanging (In-Line)	85 °C	-55 °C	10	Plug	Steel	Black	1	UL94 V-0	10000	USB - micro B	Gold	1.8 A	Shielded	Solder	30 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	800	$ 1.80

General part information

USB - micro B USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Plug Connector 10 Position Free Hanging (In-Line)
