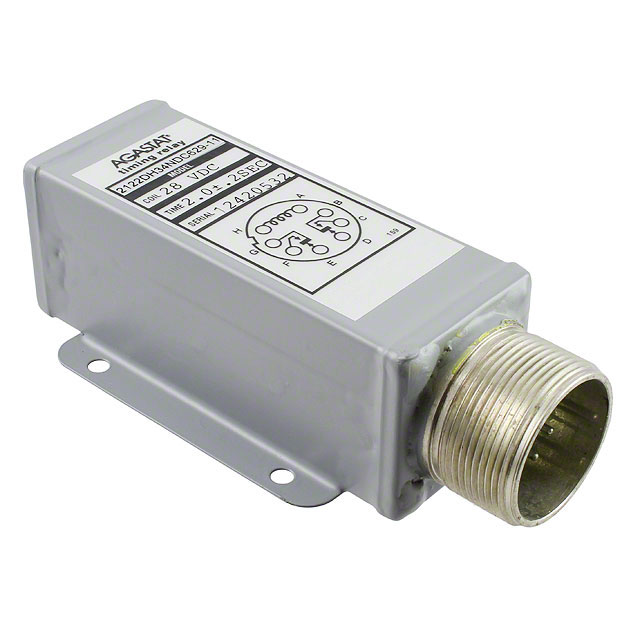

1423154-8

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY

Technical Specifications

Parameters and characteristics for this part

Part	Function	Circuit	Contact Rating @ Voltage	Termination Style	Relay Type	Voltage - Supply	Timing Adjustment Method	Delay Time [Max]	Delay Time [Min]	Timing Initiate Method
TE Connectivity Aerospace, Defense and Marine 1423154-8	Off-Delay	DPDT (2 Form C)	10 A 30 VDC 120 VAC
TE Connectivity Aerospace, Defense and Marine 4-1423154-2	On-Delay	DPDT (2 Form C)	10 A 30 VDC 120 VAC	Solder Hook	Mechanical Relay	48 VDC	Screwdriver Slot	10 s	0.75 Sec	Input Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 3606.03

General part information

Off-Delay Time Delay Relay DPDT (2 Form C) Delay 10A @ 120VAC/30VDC

Technical documentation and resources

No documents available
