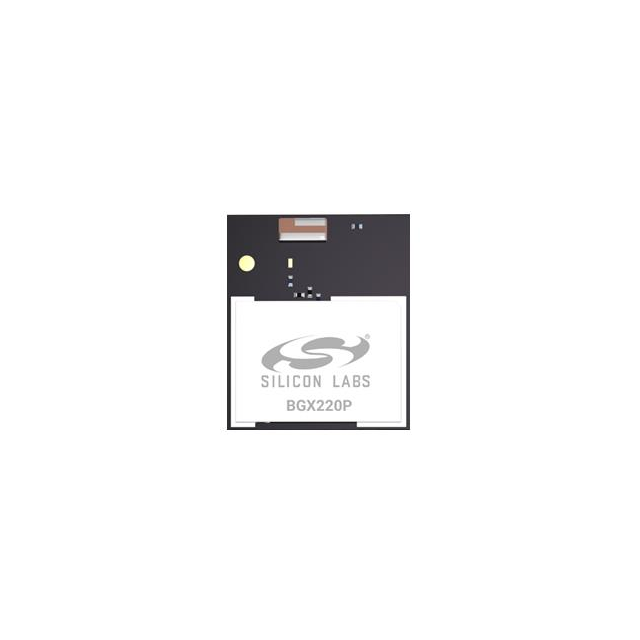

BGX220P22HNA21R
ObsoleteSilicon Labs
WIRELESS CABLE REPLACEMENT MODULE THAT ELIMINATES BLUETOOTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BGX220P22HNA21R
ObsoleteSilicon Labs
WIRELESS CABLE REPLACEMENT MODULE THAT ELIMINATES BLUETOOTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BGX220P22HNA21R |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving [Max] | 4 mA |
| Current - Receiving [Min] | 3.1 mA |
| Current - Transmitting [Max] | 4.6 mA |
| Current - Transmitting [Min] | 4.3 mA |
| Data Rate | 2 Mbps |
| Frequency [Max] | 2.4835 GHz |
| Frequency [Min] | 2.4 GHz |
| Memory Size [custom] | 512 kB |
| Memory Size [custom] | 32 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 31-SMD Module |
| Protocol | Bluetooth v5.2 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -106.7 dBm |
| Serial Interfaces | UART, I2C |
| Utilized IC / Part | EFR32BG22 |
| Voltage - Supply [Max] | 3.8 V |
| Voltage - Supply [Min] | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BGX220P22 Series
Bluetooth Bluetooth v5.2 Transceiver Module 2.4GHz ~ 2.4835GHz Integrated, Chip Surface Mount
