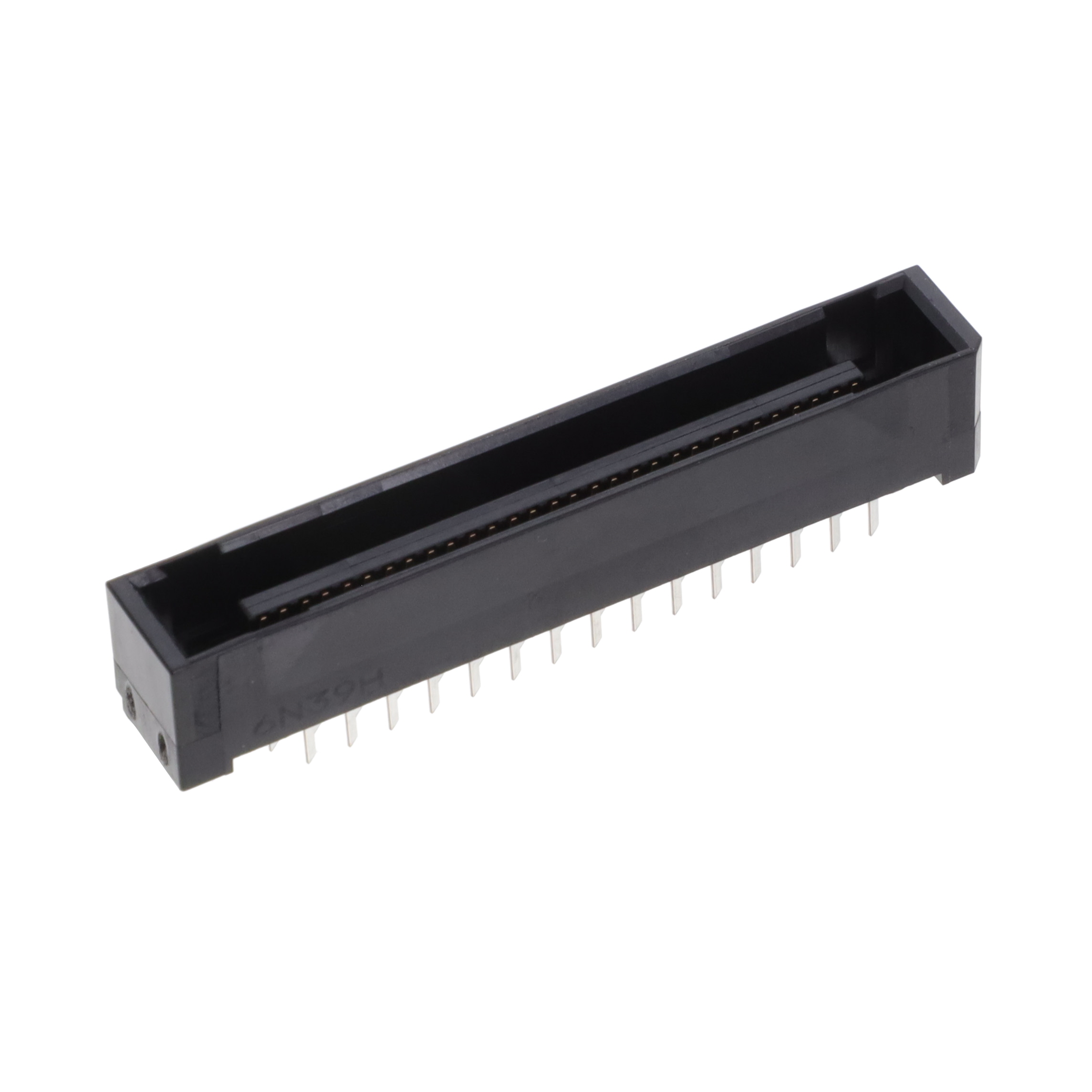

TX25-60P-6ST-H1E
ActiveJAE Electronics
CONN PLUG 60POS VERT GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TX25-60P-6ST-H1E
ActiveJAE Electronics
CONN PLUG 60POS VERT GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TX25-60P-6ST-H1E |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Height Above Board | 9.2 mm |
| Height Above Board | 0.362 in |
| Mated Stacking Heights | 16 mm, 12 mm, 18 mm |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.79 | |
| 10 | $ 3.44 | |||
| 25 | $ 3.26 | |||
| 40 | $ 3.18 | |||
| 80 | $ 3.03 | |||
| 230 | $ 2.65 | |||
| 528 | $ 2.58 | |||
| 1056 | $ 2.20 | |||
| 2640 | $ 2.05 | |||
Description
General part information
TX25-60P Series
60 Position Connector Plug, Center Strip Contacts Through Hole Gold
