Q-0401J0003018i

Active

Amphenol Custom Cable

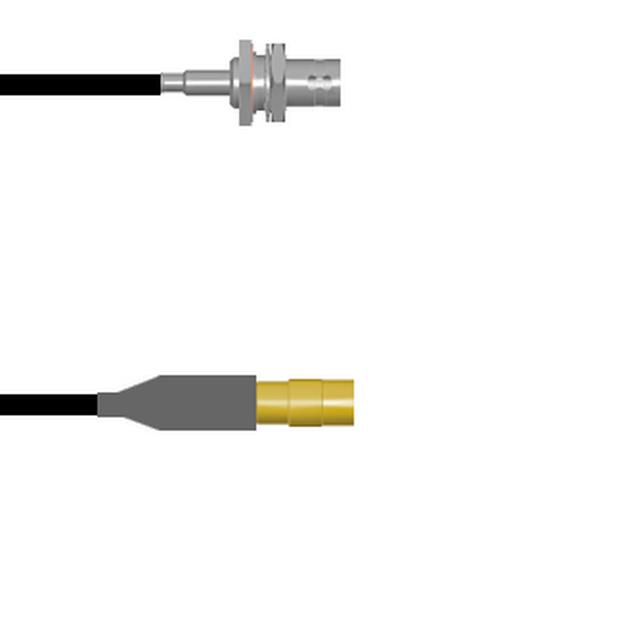

CBL ASSY BNC-MMCX JACK-JACK 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0401J0003018i

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX JACK-JACK 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0401J0003018i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0401J0 Series

Part	Cable Type	2nd Contact Gender	Style	1st Connector Mounting Feature	Color	2nd Connector	Overall Impedance	1st Connector	Features	1st Contact Gender	Length [x]	Length [x]	1st Connector Mounting Type	Frequency - Max [Max]	2nd Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-0401J0005018i	RG-316	Female	BNC to MMCX	Bulkhead - Front Side Nut	Copper	MMCX Jack	50 Ohms	BNC Jack	Shielded	Female	457.2 mm	457.2 mm	Panel Mount	4 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-0401J0005084i	RG-316	Female	BNC to MMCX	Bulkhead - Front Side Nut	Copper	MMCX Jack	50 Ohms	BNC Jack	Shielded	Female			Panel Mount	4 GHz	Free Hanging (In-Line)	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-0401J0003006i	RG-174	Female	BNC to MMCX	Bulkhead - Front Side Nut	Black	MMCX Jack	50 Ohms	BNC Jack	Shielded	Female			Panel Mount	4 GHz	Free Hanging (In-Line)	6 in	152.4 mm
Amphenol Custom Cable Q-0401J0003012i	RG-174	Female	BNC to MMCX	Bulkhead - Front Side Nut	Black	MMCX Jack	50 Ohms	BNC Jack	Shielded	Female			Panel Mount	4 GHz	Free Hanging (In-Line)	12 "	304.8 mm
Amphenol Custom Cable Q-0401J0003072i	RG-174	Female	BNC to MMCX	Bulkhead - Front Side Nut	Black	MMCX Jack	50 Ohms	BNC Jack	Shielded	Female			Panel Mount	4 GHz	Free Hanging (In-Line)	72 in	1.8 m	6 ft
Amphenol Custom Cable Q-0401J0003018i	RG-174	Female	BNC to MMCX	Bulkhead - Front Side Nut	Black	MMCX Jack	50 Ohms	BNC Jack	Shielded	Female	457.2 mm	457.2 mm	Panel Mount	4 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-0401J0005002M	RG-316	Female	BNC to MMCX	Bulkhead - Front Side Nut	Copper	MMCX Jack	50 Ohms	BNC Jack	Shielded	Female			Panel Mount	4 GHz	Free Hanging (In-Line)	78.7 in	2 m	6.6 ft
Amphenol Custom Cable Q-0401J0003003M	RG-174	Female	BNC to MMCX	Bulkhead - Front Side Nut	Black	MMCX Jack	50 Ohms	BNC Jack	Shielded	Female			Panel Mount	4 GHz	Free Hanging (In-Line)	118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-0401J0003048i	RG-174	Female	BNC to MMCX	Bulkhead - Front Side Nut	Black	MMCX Jack	50 Ohms	BNC Jack	Shielded	Female			Panel Mount	4 GHz	Free Hanging (In-Line)	48 in	1200 mm	4 ft
Amphenol Custom Cable Q-0401J0005003i	RG-316	Female	BNC to MMCX	Bulkhead - Front Side Nut	Copper	MMCX Jack	50 Ohms	BNC Jack	Shielded	Female			Panel Mount	4 GHz	Free Hanging (In-Line)	3 in	76.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 64.71
		25	$ 63.44
		50	$ 62.17
		100	$ 60.90
		250	$ 59.63

Description

General part information

Q-0401J0 Series

Cable Assembly Coaxial BNC to MMCX RG-174 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
