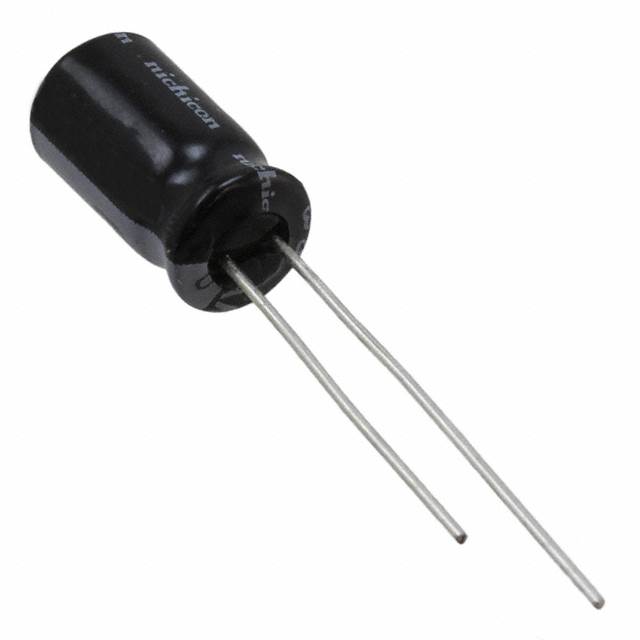

UVY1H470MED

Obsolete

NICHICON

CAP ALUM 47UF 20% 50V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY1H470MED

Obsolete

NICHICON

CAP ALUM 47UF 20% 50V RADIAL TH

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UVY1H470MED

Applications	General Purpose
Capacitance	47 µF
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lead Spacing	0.098 in
Lead Spacing	2.5 mm
Lifetime @ Temp.	1000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	230 mA
Ripple Current @ Low Frequency	115 mA
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Tolerance	20 %
Voltage - Rated	50 VDC

UVY1H Series

Part	Tolerance	Lead Spacing	Lead Spacing	Package / Case	Capacitance	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Polarization	Applications	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
NICHICON UVY1H010MDD	20 %	2 mm	0.079 in	Radial Can	1 µF	13 mA	105 ░C	-55 °C	26 mA	1000 Hrs	5 mm	0.197 "	Through Hole	Polar	General Purpose	50 VDC	11 mm	0.433 in
NICHICON UVY1H3R3MDD1TD	20 %	2 mm	0.079 in	Radial Can	3.3 µF	25 mA	105 ░C	-55 °C	50 mA	1000 Hrs	5 mm	0.197 "	Through Hole	Polar	General Purpose	50 VDC			0.492 in	12.5 mm
NICHICON UVY1H331MPD1TD	20 %	5 mm	0.197 in	Radial Can	330 µF	410 mA	105 ░C	-55 °C	615 mA	2000 Hrs	10 mm	0.394 in	Through Hole	Polar	General Purpose	50 VDC			0.689 in	17.5 mm
NICHICON UVY1H220MDD1TD	20 %	2 mm	0.079 in	Radial Can	22 µF	68 mA	105 ░C	-55 °C	136 mA	1000 Hrs	5 mm	0.197 "	Through Hole	Polar	General Purpose	50 VDC			0.492 in	12.5 mm
NICHICON UVY1H220MDD	20 %	2 mm	0.079 in	Radial Can	22 µF	68 mA	105 ░C	-55 °C	136 mA	1000 Hrs	5 mm	0.197 "	Through Hole	Polar	General Purpose	50 VDC			0.492 in	12.5 mm
NICHICON UVY1H0R1MDD1TA	20 %	2 mm	0.079 in	Radial Can	100000 pF	1.3 mA	105 ░C	-55 °C	2.6 mA	1000 Hrs	5 mm	0.197 "	Through Hole	Polar	General Purpose	50 VDC			0.492 in	12.5 mm
NICHICON UVY1H331MPD	20 %	5 mm	0.197 in	Radial Can	330 µF	410 mA	105 ░C	-55 °C	615 mA	2000 Hrs	10 mm	0.394 in	Through Hole	Polar	General Purpose	50 VDC			0.689 in	17.5 mm
NICHICON UVY1H4R7MDD	20 %	2 mm	0.079 in	Radial Can	4.7 µF	30 mA	105 ░C	-55 °C	60 mA	1000 Hrs	5 mm	0.197 "	Through Hole	Polar	General Purpose	50 VDC			0.492 in	12.5 mm
NICHICON UVY1H470MED	20 %	2.5 mm	0.098 in	Radial Can	47 µF	115 mA	105 ░C	-55 °C	230 mA	1000 Hrs	6.3 mm	0.248 in	Through Hole	Polar	General Purpose	50 VDC			0.492 in	12.5 mm
NICHICON UVY1H101MPD1TD	20 %	3.5 mm	0.138 in	Radial Can	100 µF	190 mA	105 ░C	-55 °C	285 mA	1000 Hrs	8 mm	0.315 "	Through Hole	Polar	General Purpose	50 VDC	13 mm	0.512 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.34
		10	$ 0.20
		50	$ 0.14
		100	$ 0.12
		500	$ 0.09
		1000	$ 0.09

Description

General part information

UVY1H Series

47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Miniature Type Taping Spec

Datasheet
