C96-NWR24H-SO

Active

Visual Communications Company - VCC

PMI

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

PMI

Technical Specifications

Parameters and characteristics for this part

Part	Voltage	Termination Style	Wavelength - Peak	Lens Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Current	Lens Size [diameter]	Panel Cutout Shape	Lamp Color	Millicandela Rating	Lens Transparency	Viewing Angle	Type	Lens Color
Visual Communications Company - VCC C96-NWR24H-CRO	24 V	PC Pin	634 nm	Round with Domed Top	7.37 mm	0.29 in	17 mA	8.5 mm Dia	Round	Red	2800 mcd	Clear	30 °	LED	Red
Visual Communications Company - VCC C96-NWR24H-SO	24 V	PC Pin	634 nm	Round with Domed Top	7.37 mm	0.29 in	17 mA	8.5 mm Dia	Round	Red	2800 mcd		30 °	LED
Visual Communications Company - VCC C96-NWR24H-NRO	24 V	PC Pin	634 nm	Round with Domed Top	7.37 mm	0.29 in	17 mA	8.5 mm Dia	Round	Red	2800 mcd	Diffused	30 °	LED	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.79

General part information

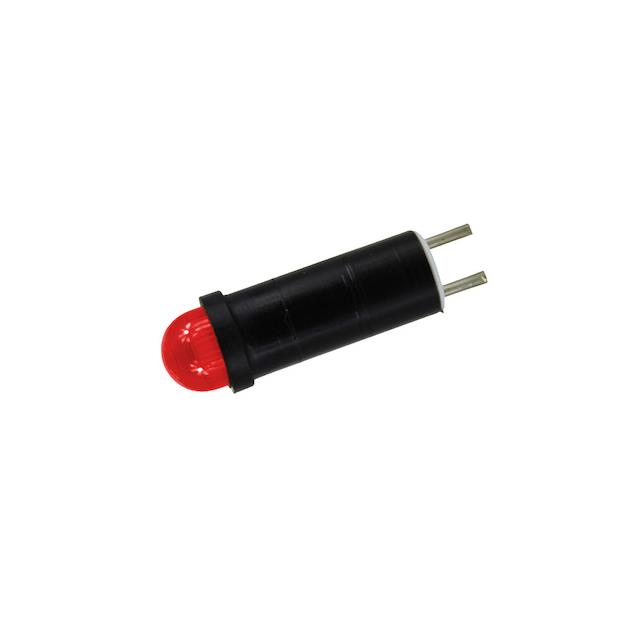

LED Panel Indicator Red 30° 24V 17mA PC Pin

Technical documentation and resources

No documents available
