101-206
ActiveOn Shore Technology Inc.

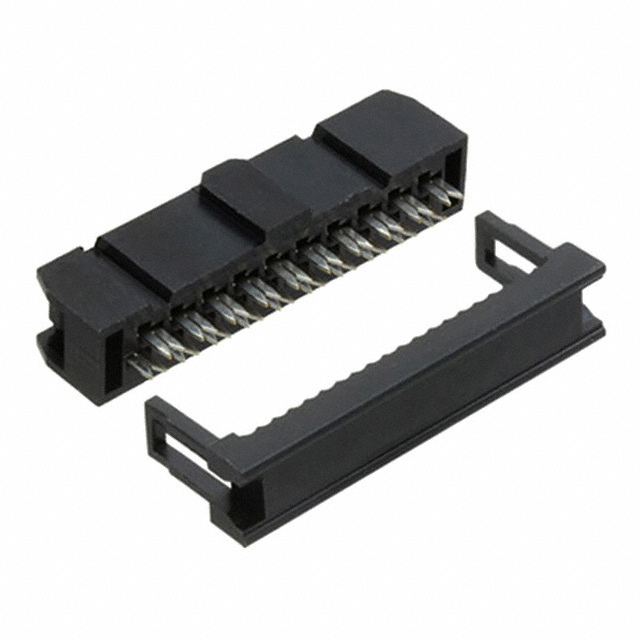

CONN SOCKET 20POS IDC GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
101-206
ActiveOn Shore Technology Inc.
CONN SOCKET 20POS IDC GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 101-206 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Female Socket |
| Features | Polarizing Key, Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.40 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.32 | |||
| 40 | $ 0.36 | |||
| 50 | $ 0.30 | |||
| 80 | $ 0.33 | |||
| 108 | $ 0.29 | |||
| 230 | $ 0.29 | |||
| 324 | $ 0.27 | |||
| 440 | $ 0.27 | |||
| 540 | $ 0.26 | |||
| 945 | $ 0.25 | |||
| 1080 | $ 0.24 | |||
| 2400 | $ 0.23 | |||
| 2592 | $ 0.23 | |||
Description
General part information
101-20 Series
20 Position Rectangular Socket Connector IDC Gold
Documents
Technical documentation and resources
