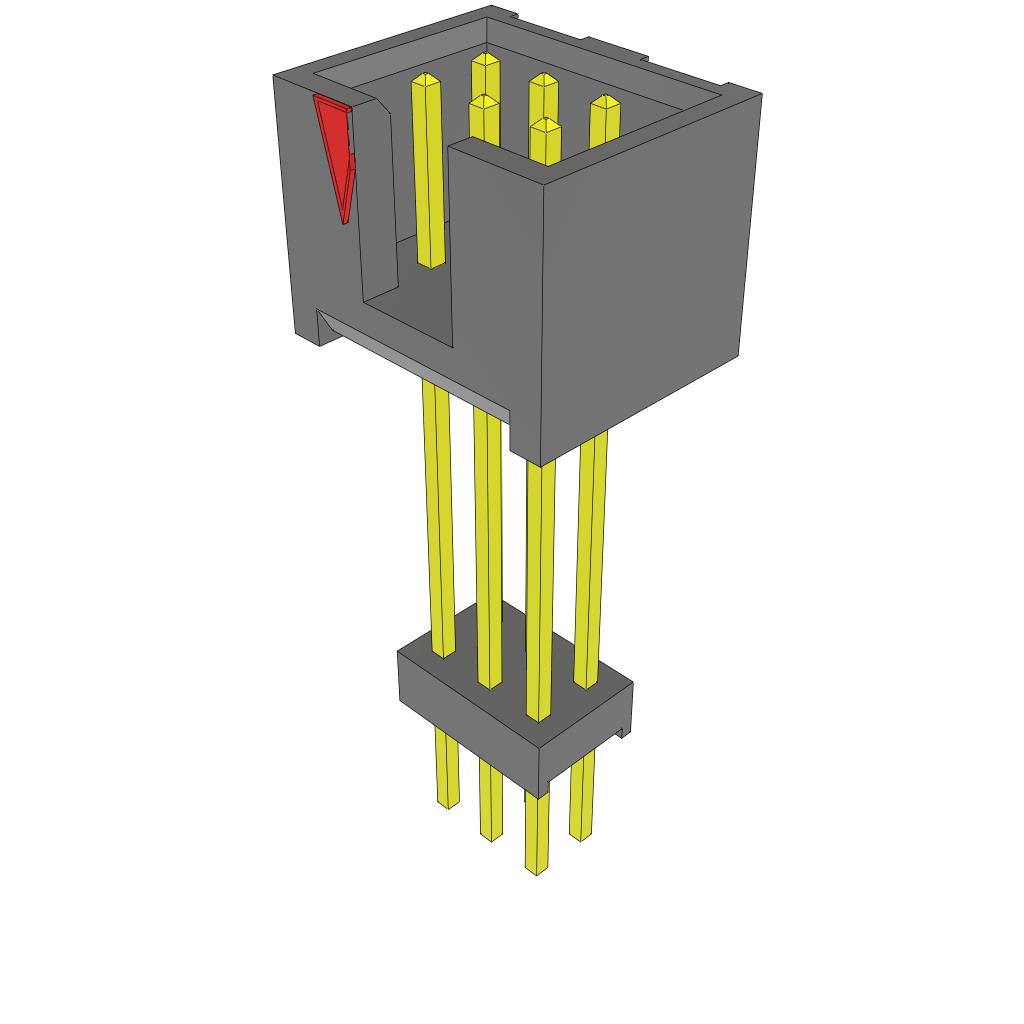

ZSS-103-07-G-D-1096

Active

Samtec Inc.

.100" SHROUDED ELEVATED TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZSS-103-07-G-D-1096

Active

Samtec Inc.

.100" SHROUDED ELEVATED TERMINAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-103-07-G-D-1096

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	27.84 mm
Insulation Height	1.096 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	1.23 in
Overall Contact Length	31.24 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

ZSS-103 Series

Part	Features	Contact Finish - Post	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Shape	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Insulation Color	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Material	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type	Number of Positions Loaded	Insulation Material	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length [x]	Overall Contact Length [x]
Samtec Inc. ZSS-103-05-S-D-810
Samtec Inc. ZSS-103-08-T-D-1197
Samtec Inc. ZSS-103-05-F-D-915	Keying Slot	Tin	2	0.1 in	2.54 mm	Square	Solder	3 µin	0.076 µm	6	1.03 in	26.16 mm	Black	Push-Pull	2.92 mm	0.115 in	Phosphor Bronze	Board to Board Cable	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	6.35 mm	0.25 in	Gold	3 A	-55 °C	125 °C	Through Hole	Elevated Header	All	Polyester Glass Filled	Male Pin
Samtec Inc. ZSS-103-03-G-D-655		Gold	2	0.1 in	2.54 mm	Square	Solder			6			Black	Push-Pull			Phosphor Bronze	Board to Board Cable	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall			Gold		-55 °C	125 °C	Through Hole	Elevated Header		Polyester Glass Filled	Male Pin
Samtec Inc. ZSS-103-07-L-D-1050
Samtec Inc. ZSS-103-03-G-D-480	Keying Slot	Gold	2	0.1 in	2.54 mm	Square	Solder	10 çin	0.25 çm	6	0.83 in	21.08 mm	Black	Push-Pull			Phosphor Bronze	Board to Board Cable	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	6.35 mm	0.25 in	Gold	3 A	-55 °C	125 °C	Through Hole	Elevated Header	All	Polyester Glass Filled	Male Pin	8.89 mm	0.35 in	12.19 mm	0.48 in	3 µin	0.076 µm
Samtec Inc. ZSS-103-09-L-D-1267
Samtec Inc. ZSS-103-03-F-D-692	Keying Slot	Tin	2	0.1 in	2.54 mm	Square	Solder	3 µin	0.076 µm	6	0.83 in	21.08 mm	Black	Push-Pull	3.5 mm	0.138 in	Phosphor Bronze	Board to Board Cable	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	6.35 mm	0.25 in	Gold	3 A	-55 °C	125 °C	Through Hole	Elevated Header	All	Polyester Glass Filled	Male Pin
Samtec Inc. ZSS-103-07-G-D-1096	Keying Slot	Gold	2	0.1 in	2.54 mm	Square	Solder	10 çin	0.25 çm	6	1.23 in	31.24 mm	Black	Push-Pull			Phosphor Bronze	Board to Board Cable	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	6.35 mm	0.25 in	Gold	3 A	-55 °C	125 °C	Through Hole	Elevated Header	All	Polyester Glass Filled	Male Pin	3.4 mm	0.134 in	27.84 mm	1.096 in	3 µin	0.076 µm
Samtec Inc. ZSS-103-01-G-D-540	Keying Slot	Gold	2	0.1 in	2.54 mm	Square	Solder	10 çin	0.25 çm	6			Black	Push-Pull	2.29 mm	0.09 "	Phosphor Bronze	Board to Board Cable	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	6.35 mm	0.25 in	Gold	3 A	-55 °C	125 °C	Through Hole	Elevated Header	All	Polyester Glass Filled	Male Pin			13.72 mm	0.54 in	3 µin	0.076 µm	0.63 "	16 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.71

Description

General part information

ZSS-103 Series

Connector Header Through Hole 6 position 0.100" (2.54mm)
