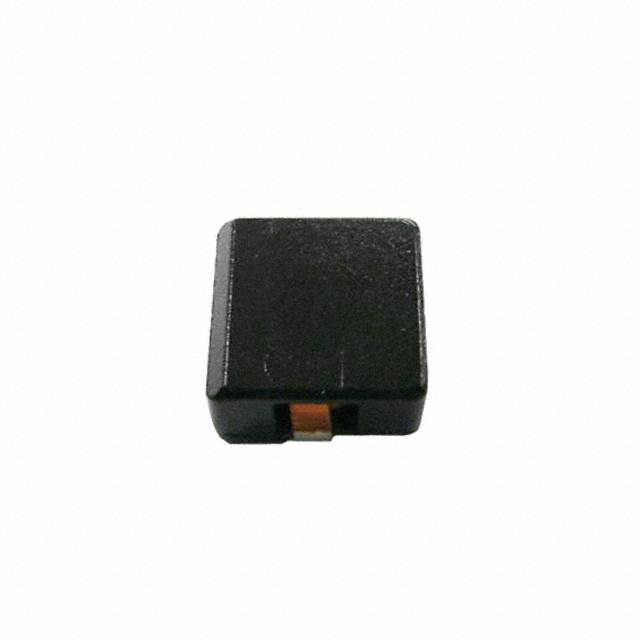

HM73-15R47LFTR13

Unknown

TT Electronics/BI Magnetics

FIXED IND 470NH 17A 1.55 MOHM

Search across all available documentation for this part.

Unknown

TT Electronics/BI Magnetics

FIXED IND 470NH 17A 1.55 MOHM

Technical Specifications

Parameters and characteristics for this part

Part	Current - Saturation (Isat)	Current Rating (Amps)	DC Resistance (DCR) [Max]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Shielding	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TT Electronics/BI Magnetics HM73-15R47LFTR13	35 A	17 A	1.55 mOhm	20 %	-40 °C	155 °C	100 kHz	Surface Mount	0.157 in	4 mm	470 nH	10.5 mm	0.461 in	11.7 mm	0.413 "	Nonstandard	Shielded
TT Electronics/BI Magnetics HM73-31100LFTR13	10 A	6 A	26 mOhm	20 %	-40 °C	155 °C	100 kHz	Surface Mount			10 µH		13 mm		13 mm	Nonstandard	Shielded	0.512 in	0.512 in	0.197 in	5 mm
TT Electronics/BI Magnetics HM73-40R50LFTR13	49 A	40 A	1 mOhm	20 %	-40 °C	155 °C	100 kHz	Surface Mount			500 nH		14.1 mm		13 mm	Nonstandard	Shielded	0.555 "	0.512 in	0.256 in	6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 nH Shielded Inductor 17 A 1.55mOhm Max Nonstandard
