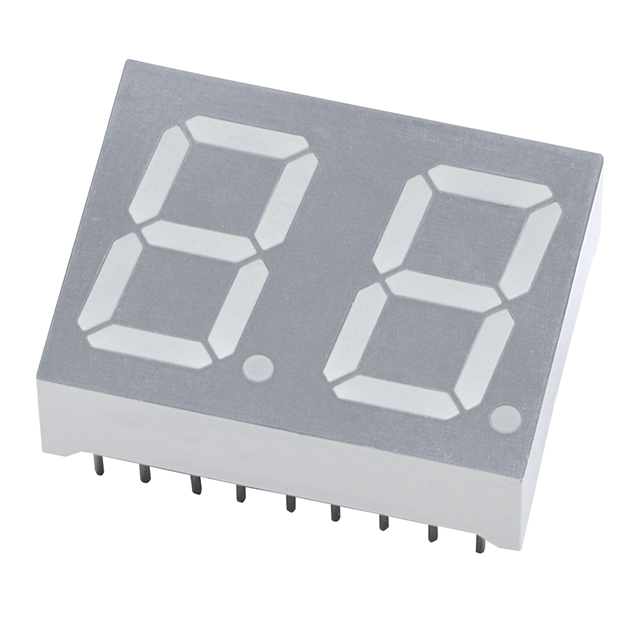

CDDC40Y1W

Active

ChromeLED

DISPLAY 7SEG 0.40" DUAL YELLOW 1

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDDC40Y1W

Active

ChromeLED

DISPLAY 7SEG 0.40" DUAL YELLOW 1

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDDC40Y1W

Color	Yellow
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	7-Segment
Millicandela Rating	3 mcd
Number of Characters	2
Package / Case	16-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	16 mm
Size / Dimension [x]	0.63 "
Size / Dimension [y]	0.795 in
Size / Dimension [y]	20.2 mm
Size / Dimension [z]	6.9 mm
Size / Dimension [z]	0.272 "
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	588 nm

CDDC40 Series

Part	Display Type	Millicandela Rating	Color	Number of Characters	Current - Test	Voltage - Forward (Vf) (Typ)	Package / Case	Wavelength - Peak	Common Pin	Digit/Alpha Size	Digit/Alpha Size [custom]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Power Dissipation (Max) [Max]
ChromeLED CDDC40Y1W	7-Segment	3 mcd	Yellow	2	10 mA	2 V	16-DIP	588 nm	Common Cathode	10.16 mm	0.4 in	6.9 mm	0.795 in	20.2 mm	0.272 "	16 mm	0.63 "	75 mw
ChromeLED CDDC40B1W	7-Segment	14 mcd	Blue	2	10 mA	3.2 V	16-DIP		Common Cathode	10.16 mm	0.4 in	6.9 mm	0.795 in	20.2 mm	0.272 "	16 mm	0.63 "	120 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.85

Description

General part information

CDDC40 Series

Display Modules - LED Character and Numeric Yellow 7-Segment 2 Character Common Cathode 2V 10mA 0.630" H x 0.795" W x 0.272" D (16.00mm x 20.20mm x 6.90mm) 16-DIP
