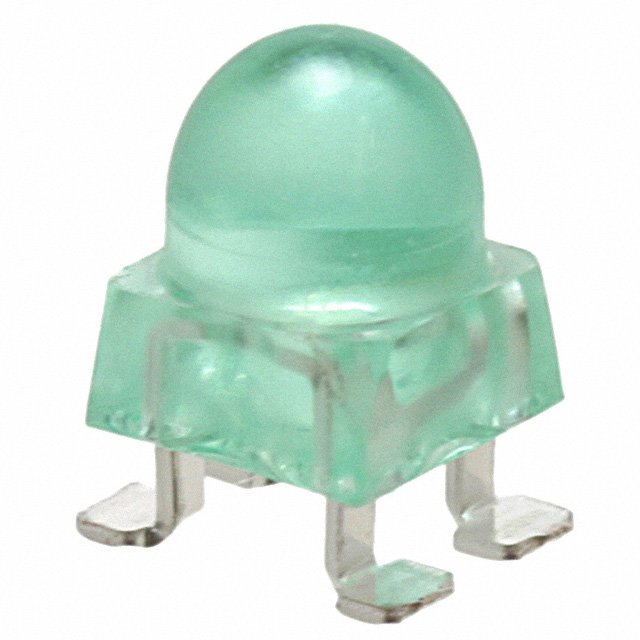

ALMD-CM3D-Y1002
ActiveBroadcom Limited
LED GREEN CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ALMD-CM3D-Y1002
ActiveBroadcom Limited
LED GREEN CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ALMD-CM3D-Y1002 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 7 mm |
| Lens Color | Green |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Size / Dimension [x] | 4.2 mm |
| Size / Dimension [y] | 4.2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 516 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.77 | |
| 10 | $ 1.13 | |||
| 100 | $ 0.80 | |||
| 500 | $ 0.67 | |||
| Digi-Reel® | 1 | $ 1.77 | ||
| 10 | $ 1.13 | |||
| 100 | $ 0.80 | |||
| 500 | $ 0.67 | |||
| Tape & Reel (TR) | 1000 | $ 0.53 | ||
Description
General part information
ALMD-CM3 Series
Green 525nm LED Indication - Discrete 3.2V 4-SMD, Gull Wing
