ASP-184330-01 - ASP-184330-01

ASP-184330-01

Active
Samtec Inc.

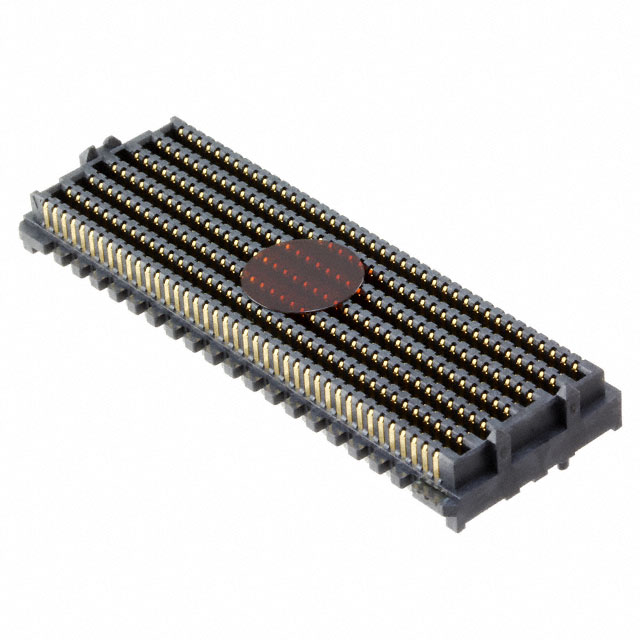

CONN, ARRAY MALE, 560POS, 14ROW, 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSEAM-10-02.0-L-05-1-A-K-TR Datasheet 02Datasheet+1
ASP-184330-01 - ASP-184330-01

ASP-184330-01

Active
Samtec Inc.

CONN, ARRAY MALE, 560POS, 14ROW, 1.27MM

Deep-Dive with AI

DocumentsSEAM-10-02.0-L-05-1-A-K-TR Datasheet 02Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationASP-184330-01
Connector TypeHigh Density Array, Male
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesBoard Guide
Height Above Board [z]0.24 "
Height Above Board [z]6.1 mm
Mated Stacking Heights9.5 mm, 10 mm, 8.5 mm, 11.5 mm, 11 mm
Mounting TypeSurface Mount
Number of Rows14
Pitch [x]0.05 in
Pitch [x]1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyStrip 1$ 47.37
10$ 45.01
25$ 42.16
50$ 36.00
100$ 31.72
250$ 28.95
NewarkEach 1$ 37.06
5$ 35.36
10$ 33.81
25$ 32.39
50$ 31.09

Description

General part information

184330-01 Series

Position Connector High Density Array, Male Surface Mount Gold
