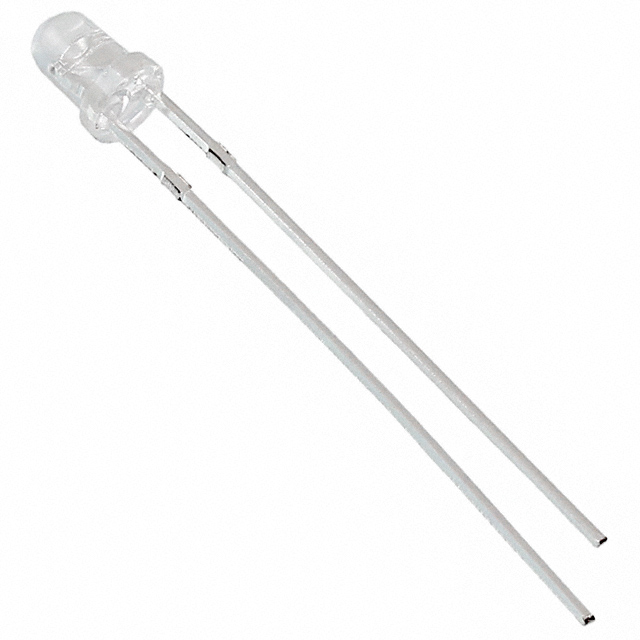

VAOL-3GSBY4

Active

Visual Communications Company - VCC

LED BLUE CLEAR T/H

Deep-Dive with AI

Search across all available documentation for this part.

VAOL-3GSBY4

Active

Visual Communications Company - VCC

LED BLUE CLEAR T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VAOL-3GSBY4

Color	Blue
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	5.55 mm
Lens Color	Colorless
Lens Size [diameter]	2.9 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	2500 mcd
Mounting Type	Through Hole
Package / Case	Radial
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ)	3.5 V
Wavelength - Dominant	470 nm

VAOL-3 Series

Part	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Style	Current - Test	Lens Color	Viewing Angle	Millicandela Rating	Mounting Type	Color	Lens Transparency	Height (Max) [Max] [z]	Configuration	Lens Size [diameter]	Wavelength - Dominant	Supplier Device Package	Wavelength	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Orientation
Visual Communications Company - VCC VAOL-3LWY4	3.5 V	Radial	Round with Domed Top	20 mA	Colorless	60 °	2500 mcd	Through Hole	White	Clear	5.55 mm	Standard	2.9 mm
Visual Communications Company - VCC VAOL-3GSBY4	3.5 V	Radial	Round with Domed Top	20 mA	Colorless	30 °	2500 mcd	Through Hole	Blue	Clear	5.55 mm	Standard	2.9 mm	470 nm
Visual Communications Company - VCC VAOL-3LAE2	1.8 V	Radial	Round with Domed Top	20 mA	Red	60 °	80 mcd	Through Hole	Red	Diffused	5.55 mm	Standard	2.9 mm	640 nm	Radial Lead
Visual Communications Company - VCC VAOL-3GUV0Y4	3 V	Radial				60 °		Through Hole								405 nm	30 mA	80 °C	-20 °C	Ultraviolet (UV)	Top View
Visual Communications Company - VCC VAOL-3LSBY1	3.5 V	Radial	Round with Domed Top	20 mA	White	60 °	1200 mcd	Through Hole	Blue	Diffused	5.55 mm	Standard	2.9 mm	470 nm
Visual Communications Company - VCC VAOL-3MAE2	1.8 V	Radial	Round with Domed Top	20 mA	Red		80 mcd	Through Hole	Red	Diffused	5.1 mm	Standard	3 mm	640 nm
Visual Communications Company - VCC VAOL-3MDE2	2.2 V	Radial	Round with Domed Top	20 mA	Green		80 mcd	Through Hole	Green	Diffused	5.1 mm	Standard	3 mm	570 nm
Visual Communications Company - VCC VAOL-3GWY4	3.5 V	Radial	Round with Domed Top	20 mA	Colorless	30 °	3500 mcd	Through Hole	White	Clear	5.55 mm	Standard	2.9 mm
Visual Communications Company - VCC VAOL-3MWY4	3.5 V	Radial	Round with Domed Top	20 mA	Colorless	60 °	2500 mcd	Through Hole	White	Clear	5.25 mm	Standard	3 mm
Visual Communications Company - VCC VAOL-3LSBY2	3.5 V	Radial	Round with Domed Top	20 mA	Blue	60 °	1200 mcd	Through Hole	Blue	Diffused	5.55 mm	Standard	2.9 mm	470 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.94
		10	$ 0.61
		100	$ 0.40
		1000	$ 0.32
		2000	$ 0.30
		5000	$ 0.29
		10000	$ 0.28
		25000	$ 0.28

Description

General part information

VAOL-3 Series

Blue 470nm LED Indication - Discrete 3.5V Radial

Documents

Technical documentation and resources

No documents available
