H3DKH-1406G

Active

Assmann WSW Components

IDC CBL - HHKR14H/AE14G/HHPK14H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR14H/AE14G/HHPK14H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DKH-1406G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Polarizing Key, Strain Relief (Socket)
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	14
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Connector Type	Features	Contact Finish	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Shielding	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Rows	Pitch - Cable	Pitch - Cable	Number of Positions	Length [x]	Length [x]	Color
Assmann WSW Components H3DKH-1406G	Socket to Plug	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	Gold	152.4 mm	6 "	0.5 '	15 µin	0.38 µm	Unshielded	0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	14
Assmann WSW Components H3DKH-1418M	Socket to Plug	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	Gold				15 µin	0.38 µm	Unshielded	0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	14	457.2 mm	1.5 ft	Multiple Ribbon
Assmann WSW Components H3DKH-1418G	Socket to Plug	Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	Gold				15 µin	0.38 µm	Unshielded	0.1 in	2.54 mm	IDC	2	0.05 "	1.27 mm	14	457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

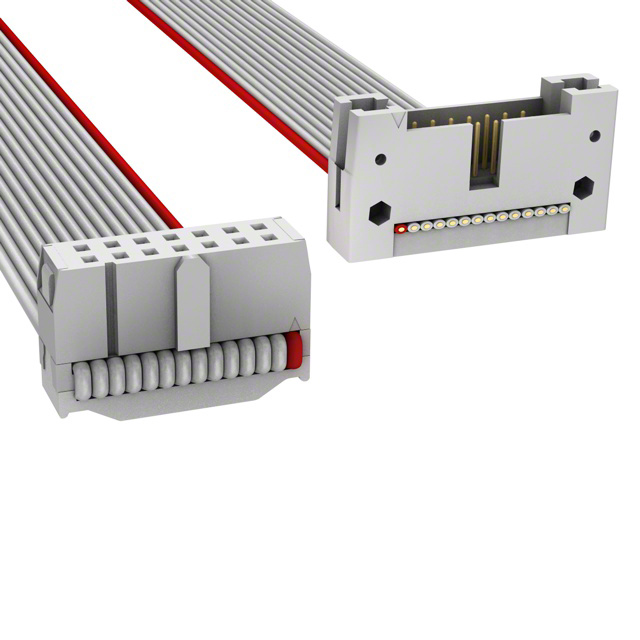

14 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
