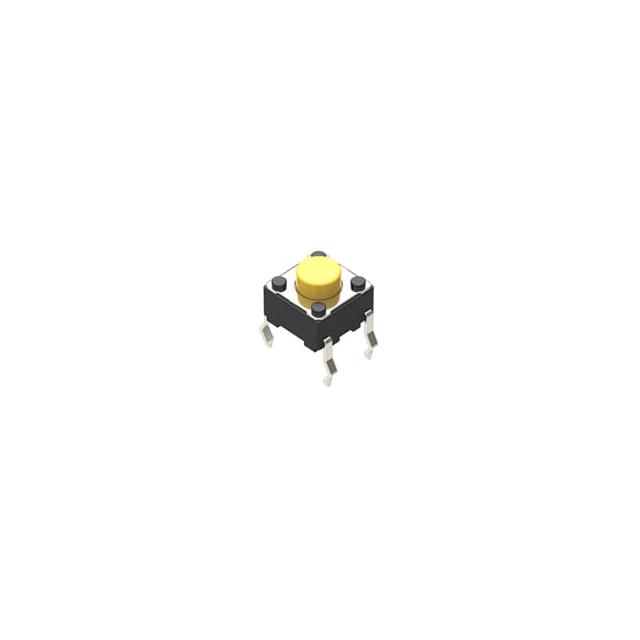

SKHHCRA010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKHHCRA010

Actuator Height off PCB, Vertical	5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Force	520 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Contact Rating @ Voltage	Circuit	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Orientation	Illumination	Mechanical Life	Switch Function	Operating Force	Actuator Type	Outline [y]	Outline [x]	Actuator Height off PCB, Vertical	Mounting Type	Actuator Height off PCB, Vertical [z]
Alps Alpine SKHHCRA010	0.05 A 12 VDC	SPST-NO	0.25 mm	90 °C	-40 °C	PC Pin	Top Actuated	Non-Illuminated	200000 Cycles	Off-Mom	520 gf	Standard	6 mm	6 mm	5 mm	Through Hole
Alps Alpine SKHHCWA010	0.05 A 12 VDC	SPST-NO	0.25 mm	90 °C	-40 °C	PC Pin	Top Actuated	Non-Illuminated	1000000 Cycles	Off-Mom	100 gf	Plunger for Cap	6 mm	6 mm		Through Hole	7.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
