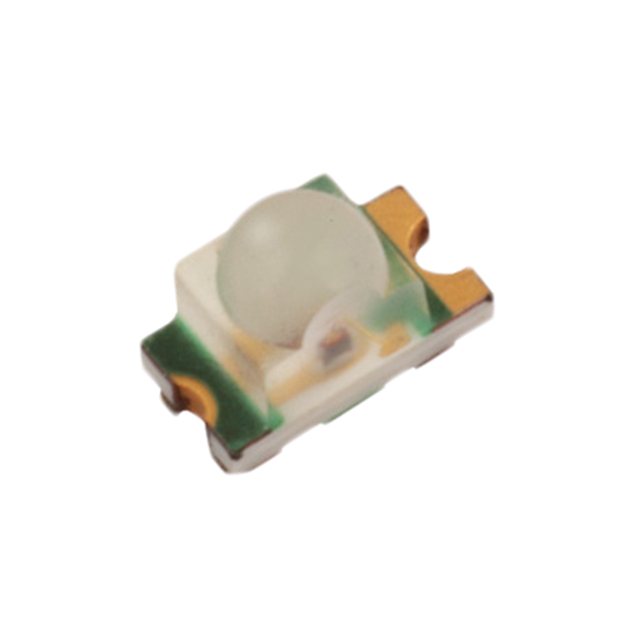

VFHR1116P-4C82A-TR
ActiveStanley Electric Co
LED RED DIFFUSED 1608 SMD
Deep-Dive with AI
Search across all available documentation for this part.
VFHR1116P-4C82A-TR
ActiveStanley Electric Co
LED RED DIFFUSED 1608 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VFHR1116P-4C82A-TR |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 2.26 mm |
| Lens Color | White |
| Lens Size [diameter] | 0.9 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 560 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.64 mm |
| Size / Dimension [y] | 0.84 mm |
| Supplier Device Package | 1608 |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Dominant | 626 nm |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.23 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.23 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.08 | |||
| 9000 | $ 0.08 | |||
| 15000 | $ 0.07 | |||
| 21000 | $ 0.07 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.07 | |||
| 150000 | $ 0.06 | |||
Description
General part information
VFHR1116 Series
Red 626nm LED Indication - Discrete 1.9V 0603 (1608 Metric)
Documents
Technical documentation and resources
No documents available
