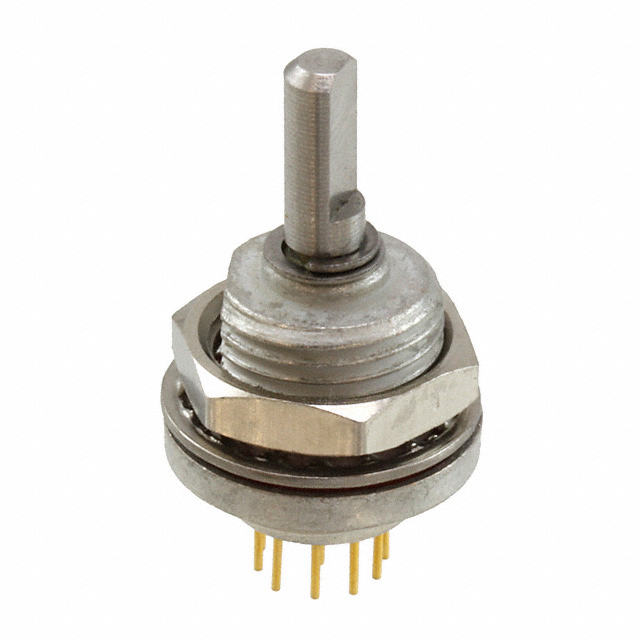

77SPT36-01-1-10S-C

Active

Grayhill Inc.

SWITCH ROTARY 10POS 50MA 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

77SPT36-01-1-10S-C

Active

Grayhill Inc.

SWITCH ROTARY 10POS 50MA 115V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	77SPT36-01-1-10S-C

Actuator Length [x]	7.98 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	36 °
Circuit per Deck	SP10T
Contact Finish	Gold
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Timing	Shorting
Current Rating (Amps)	200 mA, 50 mA
Depth Behind Panel [custom]	4.57 mm
Features	Shaft and Panel Sealed
Index Stops	Continuous
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions	10
Panel Cutout Dimensions [diameter]	9.53 mm
Termination Style	PC Pin
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

77SPT36 Series

Part	Contact Timing	Features	Angle of Throw	Actuator Type [diameter]	Actuator Type	Voltage Rating - AC	Contact Material	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Termination Style	Voltage Rating - DC	Contact Finish	Number of Decks [custom]	Index Stops	Mounting Type	Circuit per Deck	Number of Poles per Deck	Depth Behind Panel [custom]	Number of Positions	Current Rating (Amps)
Grayhill Inc. 77SPT36-01B06S	Shorting	Shaft and Panel Sealed	36 °	3.17 mm	Flatted	115 V	Silver Cadmium Oxide (AgCdO)	9.53 mm	7.98 mm	PC Pin	28 V	Gold	1	Fixed	Panel Mount Through Hole	SP6T	1	4.57 mm	6	50 mA
Grayhill Inc. 77SPT36-01B02S	Shorting	Shaft and Panel Sealed	36 °	3.17 mm	Flatted	115 V	Silver Cadmium Oxide (AgCdO)	9.53 mm	7.98 mm	PC Pin	28 V	Gold	1	Fixed	Panel Mount Through Hole	SPDT	1	4.57 mm	2	50 mA
Grayhill Inc. 77SPT36-01-1-08N	Non-Shorting	Shaft and Panel Sealed	36 °	3.17 mm	Flatted	115 V	Silver Tin Oxide (AgSnO)	9.53 mm	7.98 mm	PC Pin	28 V	Gold	1	Fixed	Panel Mount Through Hole	SP8T	1	4.57 mm	8	50 mA 200 mA
Grayhill Inc. 77SPT36-01-1-10S-C	Shorting	Shaft and Panel Sealed	36 °	3.17 mm	Flatted	115 V	Silver Cadmium Oxide (AgCdO)	9.53 mm	7.98 mm	PC Pin	28 V	Gold	1	Continuous	Panel Mount Through Hole	SP10T	1	4.57 mm	10	50 mA 200 mA
Grayhill Inc. 77SPT36-01-1-07N	Non-Shorting	Shaft and Panel Sealed	36 °	3.17 mm	Flatted	115 V	Silver Tin Oxide (AgSnO)	9.53 mm	7.98 mm	PC Pin	28 V	Gold	1	Fixed	Panel Mount Through Hole	SP7T	1	4.57 mm	7	50 mA 200 mA
Grayhill Inc. 77SPT36-01-1-04N	Non-Shorting	Shaft and Panel Sealed	36 °	3.17 mm	Flatted	115 V	Silver Tin Oxide (AgSnO)	9.53 mm	7.98 mm	PC Pin	28 V	Gold	1	Fixed	Panel Mount Through Hole	SP4T	1	4.57 mm	4	50 mA 200 mA
Grayhill Inc. 77SPT36-01B09S	Shorting	Shaft and Panel Sealed	36 °	3.17 mm	Flatted	115 V	Silver Cadmium Oxide (AgCdO)	9.53 mm	7.98 mm	PC Pin	28 V	Gold	1	Fixed	Panel Mount Through Hole	SP9T	1	4.57 mm	9	50 mA
Grayhill Inc. 77SPT36-01B10S	Shorting	Shaft and Panel Sealed	36 °	3.17 mm	Flatted	115 V	Silver Cadmium Oxide (AgCdO)	9.53 mm	7.98 mm	PC Pin	28 V	Gold	1	Fixed	Panel Mount Through Hole	SP10T	1	4.57 mm	10	50 mA
Grayhill Inc. 77SPT36-01B07S	Shorting	Shaft and Panel Sealed	36 °	3.17 mm	Flatted	115 V	Silver Cadmium Oxide (AgCdO)	9.53 mm	7.98 mm	PC Pin	28 V	Gold	1	Fixed	Panel Mount Through Hole	SP7T	1	4.57 mm	7	50 mA
Grayhill Inc. 77SPT36-01B04S	Shorting	Shaft and Panel Sealed	36 °	3.17 mm	Flatted	115 V	Silver Cadmium Oxide (AgCdO)	9.53 mm	7.98 mm	PC Pin	28 V	Gold	1	Fixed	Panel Mount Through Hole	SP4T	1	4.57 mm	4	50 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 61.35
		5	$ 52.70
		10	$ 49.35
		25	$ 45.22
		50	$ 42.31
		100	$ 39.57
		250	$ 37.64

Description

General part information

77SPT36 Series

Rotary Switch 10 Position SP10T 50mA (AC), 200mA (DC) 115 VAC Panel Mount, Through Hole
