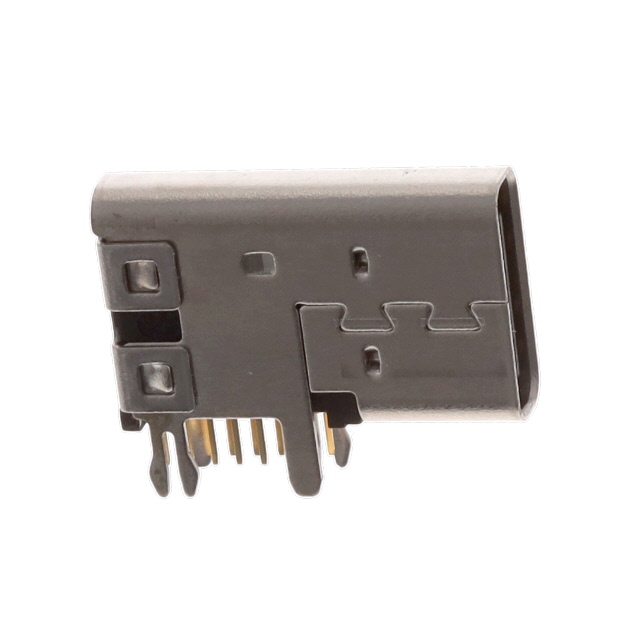

12402054M611A
ActiveAmphenol ICC (Commercial Products)
CONN RCPT USB2.0 TYPE C 24POS RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12402054M611A
ActiveAmphenol ICC (Commercial Products)
CONN RCPT USB2.0 TYPE C 24POS RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 12402054M611A |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 3 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 10000 |
| Mounting Feature | Vertical, Flag |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts [custom] | 14 |
| Number of Contacts [custom] | 10 |
| Number of Ports | 1 |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.63 | |
| 10 | $ 1.25 | |||
| 25 | $ 1.12 | |||
| 40 | $ 1.06 | |||
| 80 | $ 0.98 | |||
| 230 | $ 0.87 | |||
| 440 | $ 0.81 | |||
| 945 | $ 0.75 | |||
| 2400 | $ 0.68 | |||
Description
General part information
1240205 Series
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (14+10 Dummy) Position Through Hole, Right Angle
