100R6-51B

Active

Parlex USA LLC

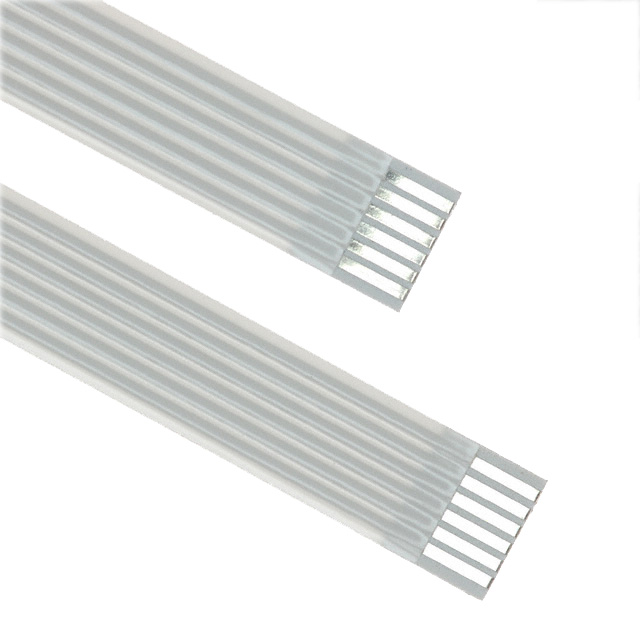

CABLE FFC/FPC 6POS 1MM 2"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 6POS 1MM 2"

Technical Specifications

Parameters and characteristics for this part

Specification	100R6-51B

Cable Type	FPC, FFC
Length	50.8 mm
Length	2 in
Length - Exposed Ends [x]	0.14 in
Length - Exposed Ends [x]	3.56 mm
Number of Conductors	6
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Pitch [x]	Pitch [x]	Termination Style	Cable Type	Length	Length	Length [x]	Length [x]
Parlex USA LLC 100R6-127B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC	5 in	127 mm
Parlex USA LLC 100R6-457B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC	18 "	457.2 mm
Parlex USA LLC 100R6-254B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC		254 mm	10 in
Parlex USA LLC 100R6-51B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC	2 in	50.8 mm
Parlex USA LLC 100R6-102B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC	4 in	101.6 mm
Parlex USA LLC 100R6-305B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC		304.8 mm	12 in
Parlex USA LLC 100R6-152B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC			5.984 in	152 mm
Parlex USA LLC 100R6-203B	0.14 in	3.56 mm	6	0.039 in	1 mm	Backers on Both Sides Top on Both Sides	FFC FPC			7.992 in	203 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position FFC, FPC Cable 0.039" (1.00mm) 2.000" (50.80mm)
