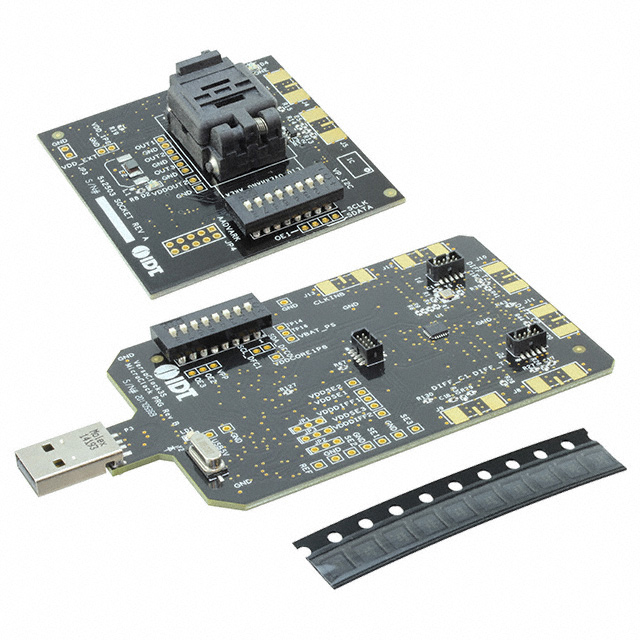

EVK5L2503

Active

Renesas Electronics Corporation

MICROCLOCK 5X2503 DEVELOPMENT KI

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

MICROCLOCK 5X2503 DEVELOPMENT KI

Technical Specifications

Parameters and characteristics for this part

Part	Type	Utilized IC / Part	Supplied Contents	Function	Contents	Input	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Ratio - Input:Output [custom]	Number of Circuits	Divider/Multiplier	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output	Frequency - Max [Max]
Renesas Electronics Corporation EVK5L2503	Timing	5L2503	Board(s)	Clock Generator	Board(s)
Renesas Electronics Corporation 5L2503-000NVGI	Clock Generator					Crystal	Surface Mount	1.89 V	1.71 V	1:3	3	Yes/No	12-DFN (2.5x2.5)	85 °C	-40 °C	12-UFDFN	LVCMOS	32.768 kHz
Renesas Electronics Corporation EVK5L2503SOCK	Timing	5L2503		Clock Generator	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 60.94

General part information

5L2503 - Clock Generator Timing Evaluation Board
