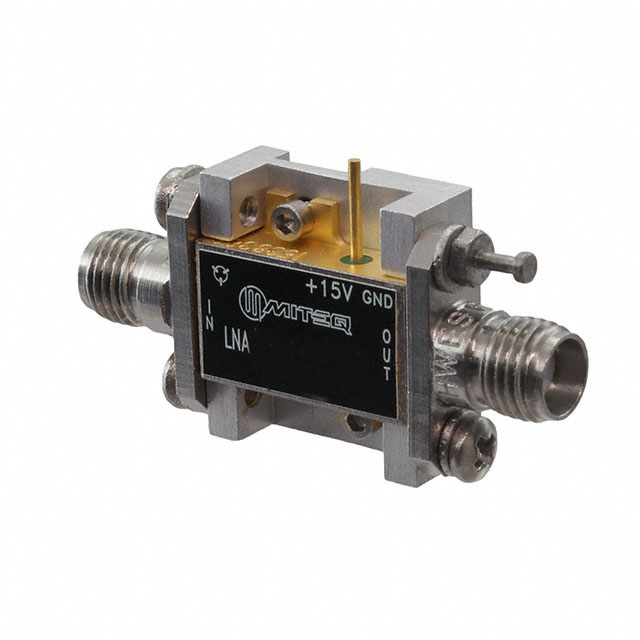

LNA-20-00101800-55-25P

Active

L3 Narda-MITEQ

IC RF AMP VSAT 100MHZ-18GHZ MOD

Search across all available documentation for this part.

Active

L3 Narda-MITEQ

IC RF AMP VSAT 100MHZ-18GHZ MOD

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply	Frequency [Min]	Frequency [Max]	Noise Figure	Current - Supply	Package / Case	Test Frequency [Min]	Test Frequency [Max]	RF Type	P1dB	Supplier Device Package	Gain
L3 Narda-MITEQ LNA-20-00101800-35-15P	15 V	100 MHz	18 GHz	3.5 dB	300 mA	Module SMA Connectors	100 MHz	18 GHz	VSAT	15 dBm	Module	20 dBi
L3 Narda-MITEQ LNA-20-12002600-38-20P	15 V	12 GHz	26 GHz	3.8 dBm	350 mA	Module SMA Connectors	12 GHz	26 GHz	VSAT	20 dBm	Module	20 dBi
L3 Narda-MITEQ LNA-20-02000800-43-25P	15 V	2 GHz	8 GHz	4.3 dB	450 mA	Module SMA Connectors	2 GHz	8 GHz	VSAT	25 dBm	Module	20 dBi
L3 Narda-MITEQ LNA-20-12002600-50-25P	15 V	12 GHz	26 GHz	5 dB	550 mA	Module SMA Connectors	12 GHz	26 GHz	VSAT	25 dBm	Module	20 dBi
L3 Narda-MITEQ LNA-20-02002600-37-15P	15 V	2 GHz	26 GHz	3.7 dB	400 mA	Module SMA Connectors	2 GHz	26 GHz	VSAT	15 dBm	Module	20 dBi
L3 Narda-MITEQ LNA-20-00100800-20-15P	15 V	100 MHz	8 GHz	2 dB	250 mA	Module SMA Connectors	100 MHz	8 GHz	VSAT	15 dBm	Module	20 dBi
L3 Narda-MITEQ LNA-20-04000800-07-10P	15 V	4 GHz	8 GHz	0.7 dB	150 mA	Module SMA Connectors	4 GHz	8 GHz	VSAT	10 dBm	Module	20 dBi
L3 Narda-MITEQ LNA-20-02000600-10-10P	15 V	2 GHz	6 GHz	1 dB	150 mA	Module SMA Connectors	2 GHz	6 GHz	VSAT	10 dBm	Module	20 dBi
L3 Narda-MITEQ LNA-20-02001800-25-10P	15 V	2 GHz	18 GHz	2.5 dB	200 mA	Module SMA Connectors	2 GHz	18 GHz	VSAT	10 dBm	Module	20 dBi
L3 Narda-MITEQ LNA-20-00101800-55-25P	15 V	100 MHz	18 GHz	5.5 dB	550 mA	Module SMA Connectors	100 MHz	18 GHz	VSAT	25 dBm	Module	20 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Amplifier IC VSAT 100MHz ~ 18GHz Module
