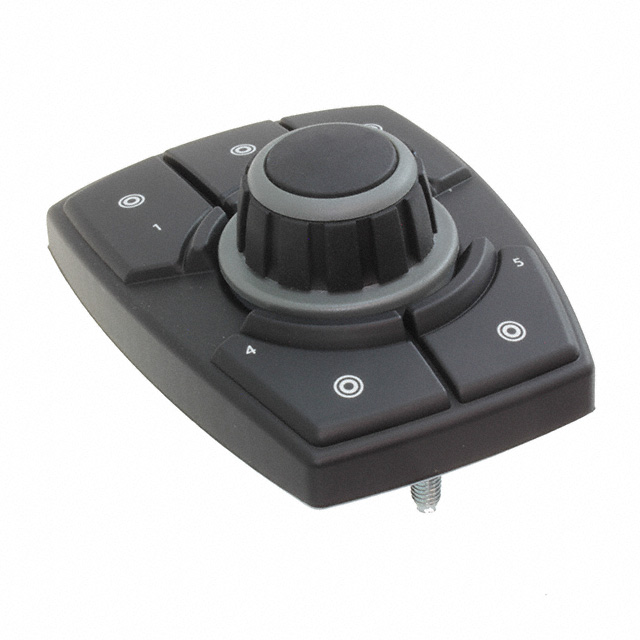

3J2015-200N
ActiveGrayhill Inc.
SWITCH NAVIGATION JOYSTICK DGTL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3J2015-200N
ActiveGrayhill Inc.
SWITCH NAVIGATION JOYSTICK DGTL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3J2015-200N |
|---|---|
| Actuator Type | Joystick |
| Electrical Life | 500000 Cycles |
| Functions, Extra | 5 Pushbuttons |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 500000 Cycles |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Digital (Mechanical Switch) |
| Switch Function | 360° Rotational, Center Select |
| Termination Style | Connector |
| Type | Navigation Switch, 1 - Axis |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 251.25 | |
| 10 | $ 242.87 | |||
Description
General part information
3J2015 Series
Navigation Switch, 1 - Axis Digital (Mechanical Switch) Output
Documents
Technical documentation and resources
