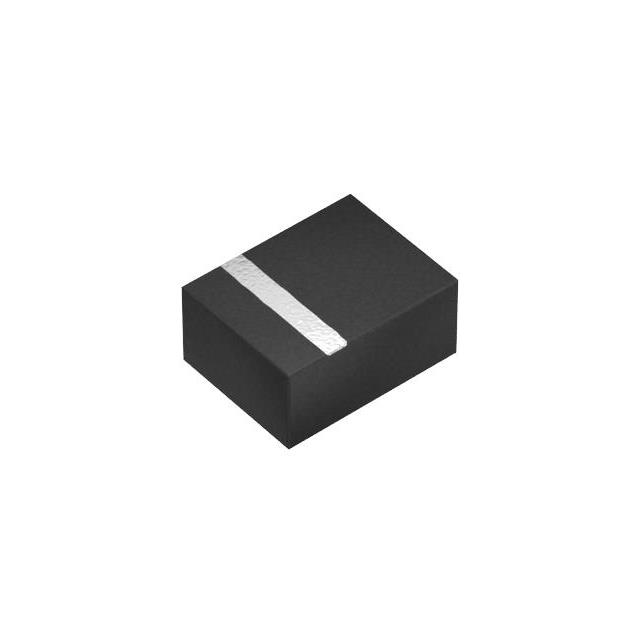

TFSZ06050775-3338A1X
ActiveEPCOS - TDK Electronics
THIN-FILM BALUN FOR 729-821MHZ (
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TFSZ06050775-3338A1X
ActiveEPCOS - TDK Electronics
THIN-FILM BALUN FOR 729-821MHZ (
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TFSZ06050775-3338A1X |
|---|---|
| Frequency Range [Max] | 821 MHz |
| Frequency Range [Min] | 729 MHz |
| Impedance - Unbalanced/Balanced | 50 Ohm, 100 Ohm |
| Impedance - Unbalanced/Balanced | 1:2 |
| Insertion Loss (Max) [Max] | 0.8 dB |
| Mounting Type | Surface Mount |
| Package / Case | 0505 Metric |
| Package / Case | 4 Lead |
| Package / Case | 0202 |
| Phase Difference | 180 ° |
| Return Loss (Min) [Min] | 10 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.21 | |||
| 5000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.61 | ||
| 10 | $ 0.59 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.21 | |||
| 5000 | $ 0.18 | |||
| Tape & Reel (TR) | 10000 | $ 0.15 | ||
Description
General part information
TFSZ06050775 Series
RF Balun 729MHz ~ 821MHz 1:2, 50 / 100Ohm 0202 (0505 Metric), 4 PC Pad
