R280467000

Active

Radiall USA, Inc.

ACCESSORY / SMA / N / REMOVABLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

ACCESSORY / SMA / N / REMOVABLE

Technical Specifications

Parameters and characteristics for this part

Part	Type	Contact Finish	Pin or Socket	Mounting Type	Contact Termination	Accessory Type	Color	Connector Style	For Use With/Related Products	Center Conductor Diameter [diameter]	Center Conductor Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Impedance
Radiall USA, Inc. R280465000	N SMA	Gold	Pin	Through Hole	Solder Tab
Radiall USA, Inc. R280467000						Insulator	Natural
Radiall USA, Inc. R280468120						Insulator	Natural	SMA	SMA Connectors
Radiall USA, Inc. R280462000	N SMA	Gold	Pin	Free Hanging (In-Line)	Solder					0.05 in	1.27 mm
Radiall USA, Inc. R280461210	SMA	Gold	Pin	Free Hanging (In-Line)	Solder					0.05 in	1.27 mm	50 µin	1.27 µm	Beryllium Copper
Radiall USA, Inc. R280469000	SMA	Gold	Socket	Free Hanging (In-Line)	Crimp					0.033 in	0.85 mm			Bronze	50 Ohms
Radiall USA, Inc. R280461000	N SMA	Gold	Pin	Free Hanging (In-Line)	Solder					0.05 in	1.27 mm			Beryllium Copper
Radiall USA, Inc. R280463000	SMA	Gold	Pin	Through Hole	Solder					0.05 in	1.27 mm			Brass	50 Ohms
Radiall USA, Inc. R280468140						Insulator	Natural	SMA	SMA Connectors
Radiall USA, Inc. R280469010	SMA	Gold	Socket	Free Hanging (In-Line)	Crimp					0.033 in	0.85 mm			Bronze	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 8.01

General part information

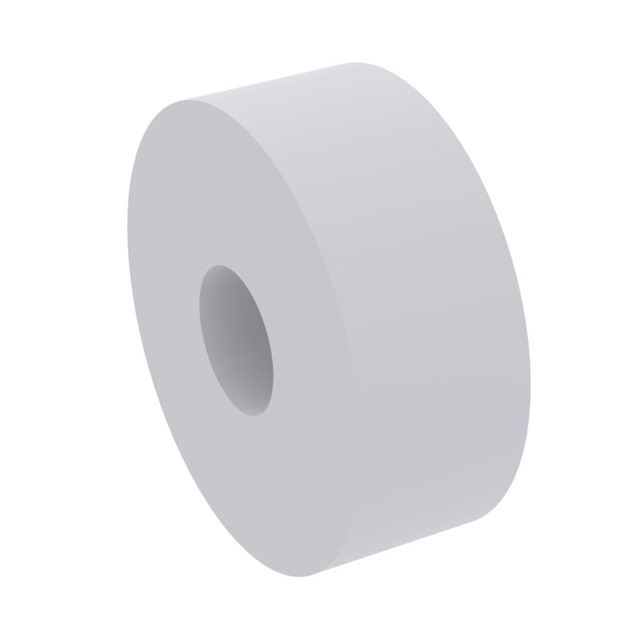

Connector Insulator For N Type and SMA Connectors
