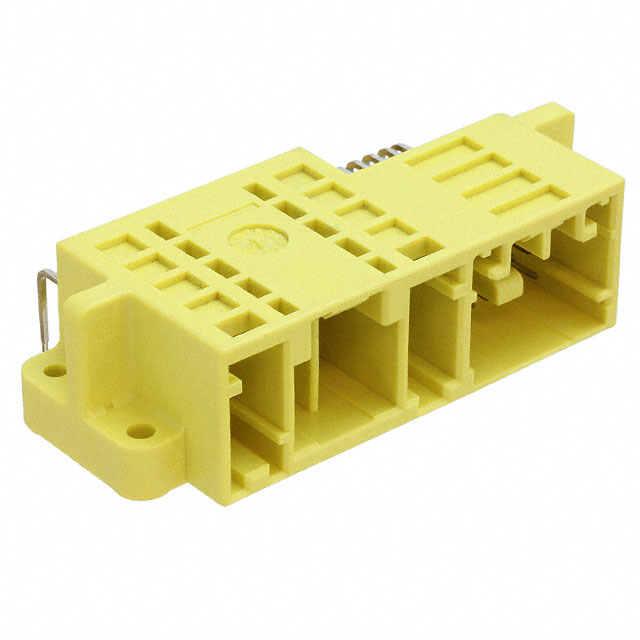

MX26032NP1
ObsoleteJAE Electronics
CONN HEADER R/A 32POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MX26032NP1
ObsoleteJAE Electronics
CONN HEADER R/A 32POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MX26032NP1 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Mounting Flange |
| Insulation Color | Yellow |
| Insulation Height | 0.701 " |
| Insulation Height | 17.8 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 3, 2 |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MX26032N Series
Connector Header Through Hole, Right Angle 32 position
Documents
Technical documentation and resources
