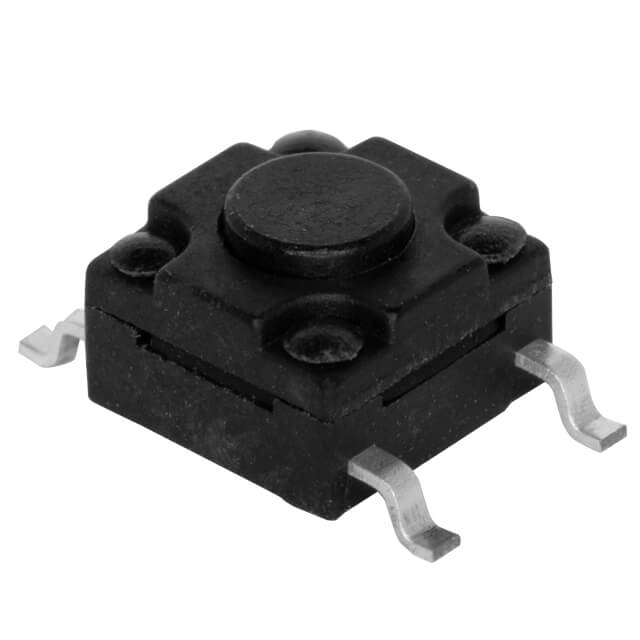

TS08-66-43-BK-160-SMT-67

Active

CUI Devices

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CUI Devices

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TS08-66-43-BK-160-SMT-67

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Material	Polyamide (PA6T), Nylon 6T
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	80000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Outline [x]	6.1 mm
Outline [y]	6.1 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

Part	Actuator Orientation	Mechanical Life	Circuit	Ingress Protection	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Outline [x]	Outline [y]	Illumination	Mounting Type	Termination Style	Actuator Material	Switch Travel	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type
CUI Devices TS08-66-43-BK-160-SMT-67	Top Actuated	80000 Cycles	SPST-NO	IP67 - Dust Tight Waterproof	4.3 mm	0.05 A 12 VDC	6.1 mm	6.1 mm	Non-Illuminated	Surface Mount	Gull Wing	Polyamide (PA6T) Nylon 6T	0.25 mm	Off-Mom	-30 ░C	80 C	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
