09365101301

Active

HARTING Technology Group

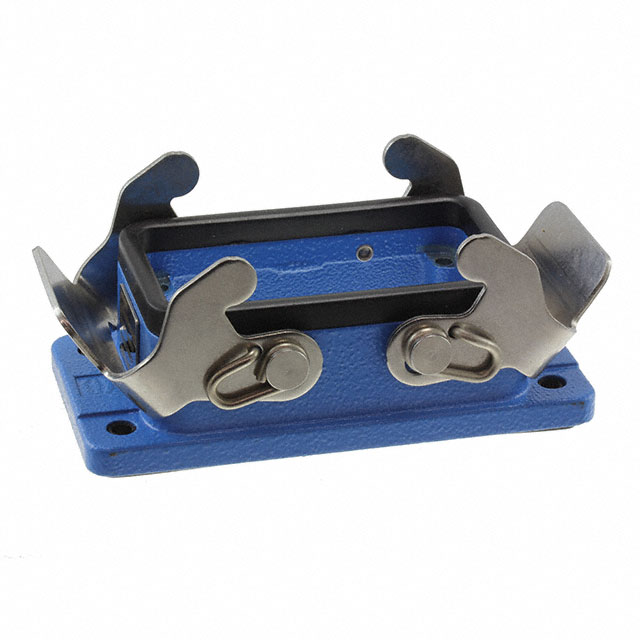

10B EX BULKHEAD HOUSING, DOUBLE

Search across all available documentation for this part.

Active

HARTING Technology Group

10B EX BULKHEAD HOUSING, DOUBLE

Technical Specifications

Parameters and characteristics for this part

Specification	09365101301

Connector Type	Base - Panel Mount
Housing Color	Blue
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	10B
Size / Dimension [x]	98 mm
Size / Dimension [x]	3.858 "
Size / Dimension [y]	1.906 in
Size / Dimension [y]	48.4 mm
Size / Dimension [z]	31.3 mm
Size / Dimension [z]	1.232 in
Style	Bottom Entry

Part	Housing Color	Lock Location	Housing Material	Style	Housing Finish	Connector Type	Size	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ingress Protection
HARTING Technology Group 09365101301	Blue	Locking Clip (2) on Base Bottom	Zinc Die Cast	Bottom Entry	Powder Coated	Base - Panel Mount	10B	-20 C	40 °C	98 mm	31.3 mm	1.232 in	3.858 "	1.906 in	48.4 mm	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 10B IP65 - Dust Tight, Water Resistant
